PIC16F914-I/PT

4KX14, 44TQFP, 8-Bit, Flash-Based, CMOS Microcontroller, 250 mA, -0.3V to +6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: PIC16F914-I/PT

Brand:: Microchip Technology - Microchip | Pack: TQFP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:PIC16F914-I/PT
US $0.30 - 0.50
Quantity:

piece

Product Summary

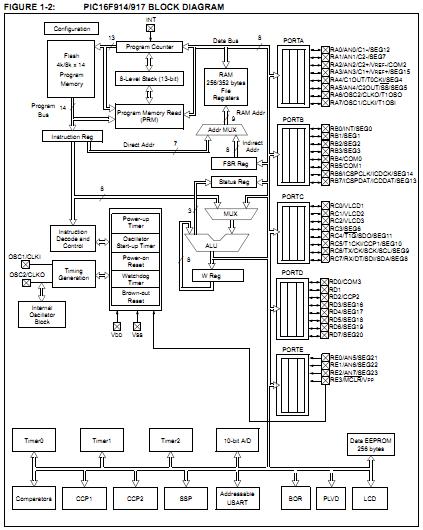

The PIC16F914-I/PT is a 44-Pin Flash-Based, 8-Bit CMOS Microcontroller with LCD Driver and nanoWatt Technology.

Parametrics

PIC16F914-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS:. -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sourced by all ports (combined): 200 mA; (14)Maximum current sunk by by all ports (combined): 200 mA.

Features

PIC16F914-I/PT features: (1)Only 35 instructions to learn: All single-cycle instructions except branches; (2)Operating speed: DC – 20 MHz oscillator/clock input; DC – 200 ns instruction cycle; (3)Program Memory Read (PMR) capability; (4)Interrupt capability; (5)8-level deep hardware stack; (6)Direct, Indirect and Relative Addressing modes; (7)Precision Internal Oscillator: Factory calibrated to ±1%; (8)Software selectable frequency range of 8 MHz to 32 kHz; (9)Software tunable; (10)Two-Speed Start-up mode; (11)Crystal fail detect for critical applications; (12)Clock mode switching during operation for power savings; (13)Power-saving Sleep mode; (14)Wide operating voltage range (2.0V-5.5V); (15)Industrial and Extended temperature range; (16)Power-on Reset (POR); (17)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (18)Brown-out Reset (BOR) with software control option; (19)Enhanced Low-Current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (20)Multiplexed Master Clear with pull-up/input pin; (21)Programmable code protection.
