PIC16F886-I/SS

PIC16F886-I/SS, SSOP, 28/40/44-pin, enhanced flash-based 8-bit cmos microcontroller, 800 mW, 300 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: PIC16F886-I/SS

Brand:: Microchip Technology - Microchip | Pack: SSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:PIC16F886-I/SS
US $0.30 - 0.50
Quantity:

piece

Product Summary

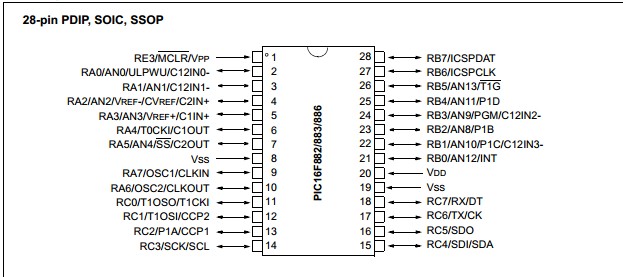

The PIC16F886-I/SS is a 28-pin flash-based microcontroller with nanowatt technology. The PIC16F886-I/SS is covered by this data sheet. The PIC16F882/883/886 is available in 28-pin PDIP, SOIC, SSOP and QFN packages. The PIC16F884/887 is available in a 40-pin PDIP and 44-pin QFN and TQFP packages. Figure 1-1 shows the block diagram of PIC16F882/883/886 and Figure 1-2 shows a block diagram of the PIC16F884/887 device.

Parametrics

PIC16F886-I/SS absolute maximum ratings: (1)Ambient temperature under bias: -40°C to +125°C; (2)Storage temperature: -65°C to +150°C; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA.

Features

PIC16F886-I/SS features: (1)High-Performance RISC CPU: Only 35 instructions to learn:; (2)- All single-cycle instructions except branches; (3)Special Microcontroller Features: Precision Internal Oscillator; (4)Low-Power Features: Operating Current:- 11 μA @ 32 kHz, 2.0V, typical; (5)Peripheral Features: 24/35 I/O pins with individual direction control.
