Product Summary

The PIC16F882-I/SP is a 28-pin, enhanced flash-based 8-bit CMOS microcontroller. It is available in available in 28- pin PDIP, SOIC, SSOP and QFN packages.

Parametrics

PIC16F882-I/SP absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 95 mA; (8)Maximum current into VDD pin: 95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports (combined): 90 mA; (14)Maximum current sourced by all ports (combined): 90 mA.

Features

PIC16F882-I/SP features: (1)Power-Saving Sleep mode; (2)Wide Operating Voltage Range (2.0V-5.5V); (3)Industrial and Extended Temperature Range; (4)Power-on Reset (POR); (5)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (6)Brown-out Reset (BOR) with Software Control Option; (7)Enhanced Low-Current Watchdog Timer (WDT) with On-Chip Oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (8)Multiplexed Master Clear with Pull-up/Input Pin; (9)Programmable Code Protection.

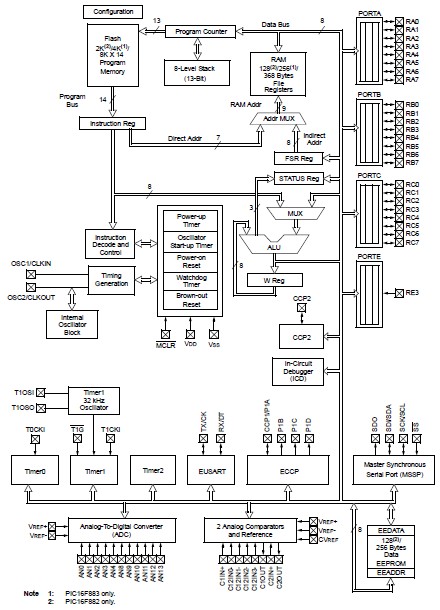

Diagrams

PIC16F882-I/SP pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F882-I/SP
PIC16F882-I/SP

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB Enhanced Flash 128 RAM 25 I/O

Data Sheet

0-1: $1.37
1-10: $1.10
10-25: $1.01
25-100: $0.95
