Product Summary
The PIC16F877A-IP is an Enhanced Flash Microcontroller. Additional information may be found in the PICmicro Mid-Range Reference Manual (DS33023), which may be obtained from your local Microchip Sales Representative or downloaded from the Microchip web site. The Reference Manual should be considered a complementary document to this data sheet and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.
Parametrics
PIC16F877A-IP absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4) : -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS (Note 2): 0 to +14V; (6)Voltage on RA4 with respect to Vss : 0 to +8.5V; (7)Total power dissipation (Note 1): 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD) : ± 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA, PORTB and PORTE (combined) (Note 3): 200 mA; (15)Maximum current sourced by PORTA, PORTB and PORTE (combined) (Note 3): 200 mA; (16)Maximum current sunk by PORTC and PORTD (combined) (Note 3) : 200 mA; (17)Maximum current sourced by PORTC and PORTD (combined) (Note 3) : 200 mA.
Features
PIC16F877A-IP features: (1)100,000 erase/write cycle Enhanced Flash program memory typical; (2)1,000,000 erase/write cycle Data EEPROM memory typical; (3)Data EEPROM Retention > 40 years; (4)Self-reprogrammable under software control; (5)In-Circuit Serial Programming (ICSP)via two pins; (6)Single-supply 5V In-Circuit Serial Programming; (7)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (8)Programmable code protection; (9)Power saving Sleep mode; (10)Selectable oscillator options; (11)In-Circuit Debug (ICD) via two pins.

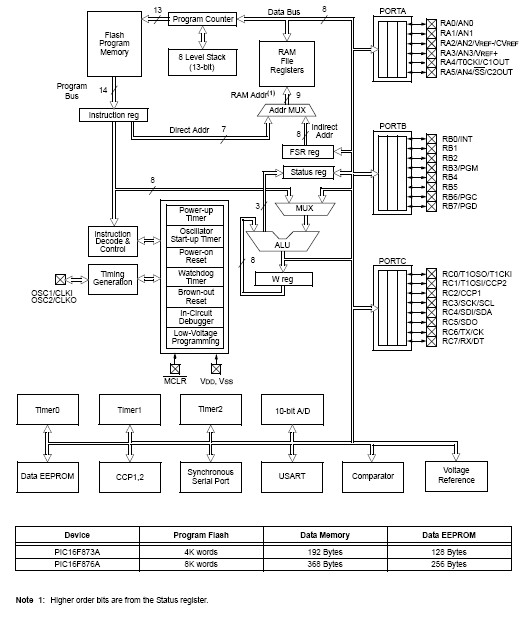

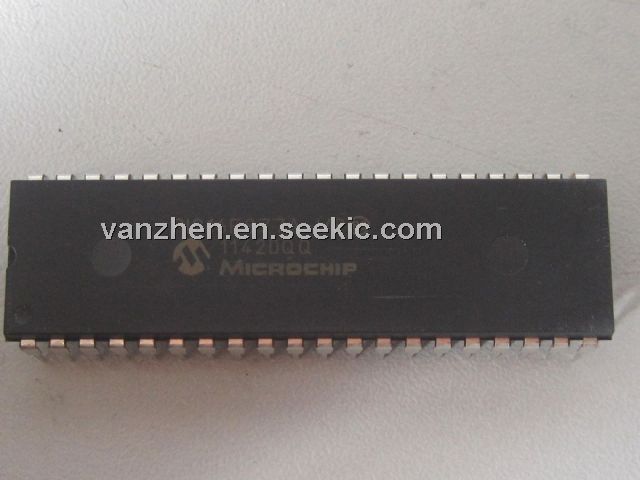

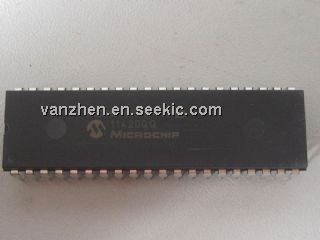

Diagrams
