PIC16F722AT-I/SS

28-Pin Flash Microcontroller, 25 mA, 800mW, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: PIC16F722AT-I/SS

Brand:: Microchip Technology - Microchip | Pack: SSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:PIC16F722AT-I/SS
US $0.30 - 0.50
Quantity:

piece

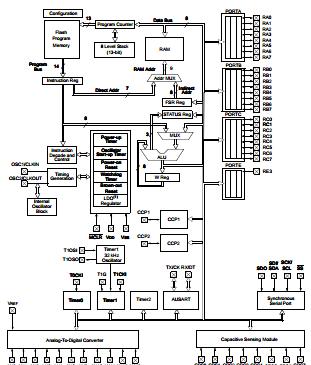

Product Summary

The PIC16F722AT-I/SS is a 28-Pin Flash Microcontroller. It has a 13-bit program counter capable of addressing a 2K x 14 program memory space for the PIC16F722AT-I/SS. Accessing a location above the memory boundaries for the PIC16F722AT-I/SS will cause a wrap-around within the first 2K x 14 program memory space. The reset vector is at 0000h and the interrupt vector is at 0004h. It is available in 28-pin packages.

Parametrics

PIC16F722AT-I/SS absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on VCAP pin with respect to VSS: -0.3V to +4.0V; (5)Voltage on VDD with respect to VSS: -0.3V to +4.0V; (6)Voltage on MCLR with respect to Vss: -0.3V to +9.0V; (7)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (8)Total power dissipation: 800 mW; (9)Maximum current out of VSS pin: 95 mA; (10)Maximum current into VDD pin: 70 mA; (11)Clamp current: 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA.

Features

PIC16F722AT-I/SS features: (1)Up to 4K x 14 Words of Flash Program Memory; (2)Up to 192 Bytes of Data Memory (RAM); (3)Interrupt Capability; (4)8-Level Deep Hardware Stack; (5)Direct, Indirect and Relative Addressing modes; (6)Processor Read Access to Program Memory; (7)On-chip 3.2V Regulator; (8)Up to 24 I/O Pins and 1 Input-only Pin; (9)Sleep Mode: 20 nA; (10)Watchdog Timer: 500 nA ; (11)Timer1 Oscillator: 600 nA @ 32 kHz; (12)Synchronous Serial Port (SSP).
