PIC16F688-I/SL

8-Bit CMOS Microcontroller, ± 20 mA, 250 mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: PIC16F688-I/SL

Brand:: Microchip Technology - Microchip | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:PIC16F688-I/SL
US $0.30 - 0.50
PIC16F688-I/SL

US $0.95 - 1.98 / Piece
(0) Remove
Quantity:

piece

Product Summary

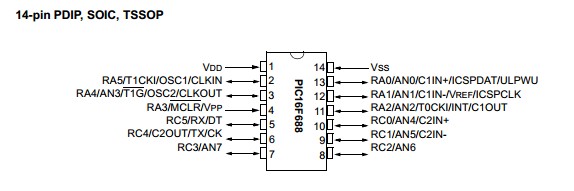

The PIC16F688-I/SL is a 14-Pin Flash-Based, 8-Bit CMOS Microcontroller with nanoWatt Technology. The PIC16F688-I/SL is covered by this data sheet. It is available in 14-pin PDIP, SOIC and TSSOP packages. The PIC16F688-I/SL has a 13-bit program counter capable of addressing a 4k x 14 program memory space. Only the first 4k x 14 (0000h-01FFF) for the PIC16F688-I/SL is physically implemented. Accessing a location above these boundaries will cause a wrap around within the first 4k x 14 space. The Reset vector is at 0000h and the interrupt vector is at 0004h.

Parametrics

PIC16F688-I/SL absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current: ± 20 mA; (10)Output clamp current: ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA and PORTC (combined: 200 mA; (14)Maximum current sourced PORTA and PORTC (combined): 200 mA.

Features

PIC16F688-I/SL features: (1)High-Performance RISC CPU; (2)Interrupt capability; (3)8-level deep hardware stack; (4)Direct, Indirect and Relative Addressing modes; (5)Precision Internal Oscillator; (6)Power saving Sleep mode; (7)Wide operating voltage range (2.0V-5.5V); (8)Industrial and Extended temperature range; (9)Power-on Reset (POR); (10)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (11)Low-Power Features; (12)Timer0: 8-bit timer/counter with 8-bit programmable prescaler.
