PIC16F54-I/SO

PIC16F54-I/SO, CMOS Microcontroller, SOIC, 50mA, 800mW, Microchip Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	0.39 / Piece
500 ~ 10000 :	0.33 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: PIC16F54-I/SO

Brand:: Microchip Technology - Microchip | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:PIC16F54-I/SO
US $0.30 - 0.39
Quantity:

piece

Product Summary

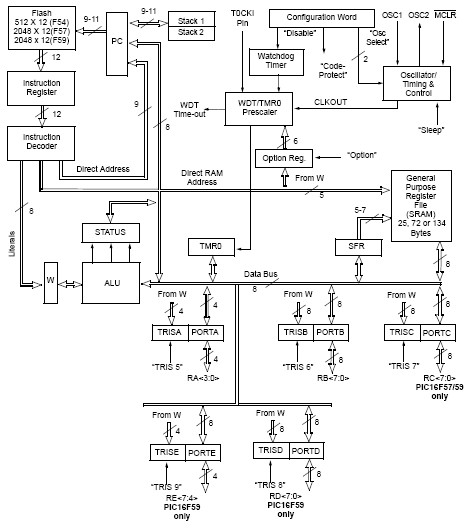

The PIC16F54-I/SO is a CMOS Microcontroller. The PIC16F54-I/SO from Microchip Technology is a family of low-cost, high-performance, 8-bit, fully static, Flashbased CMOS microcontrollers. The PIC16F54-I/SO employs a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle except for program branches which take two cycles. The PIC16F54-I/SO performance an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easyto- remember instruction set reduces development time significantly.

Parametrics

PIC16F54-I/SO absolute maximum ratings: (1)Ambient Temperature under bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0V to +6.5V; (4)Voltage on MCLR with respect to VSS: 0V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.6V to (VDD + 0.6V); (6)Total power dissipation: 800 mW; (7)Max. current out of VSS pin: 150 mA; (8)Max. current into VDD pin: 100 mA; (9)Max. current into an input pin (T0CKI only): ±500 μA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (12)Max. output current sunk by any I/O pin: 25 mA; (13)Max. output current sourced by any I/O pin: 25 mA; (14)Max. output current sourced by a single I/O port (PORTA, B or C): 50 mA; (15)Max. output current sunk by a single I/O port (PORTA, B or C): 50 mA.

Features

PIC16F54-I/SO features: (1)Power-on Reset (POR); (2)Device Reset Timer (DRT); (3)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (4)Programmable Code Protection; (5)Power-Saving Sleep mode; (6)In-Circuit Serial ProgrammingTM (ICSPTM); (7)8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler.
