Product Summary
The PIC16F54-I/P is an 8-Bit CMOS Microcontroller which is equipped with special features that reduce system cost and power requirements. The Power-on Reset (POR) and Device Reset Timer (DRT) eliminate the need for external Reset circuitry. There are four oscillator configurations to choose from, including the power-saving LP (Low Power) oscillator and cost saving RC oscillator. Powersaving Sleep mode, Watchdog Timer and code protection features improve system cost, power and reliability.
Parametrics
PIC16F54-I/P absolute maximum ratings: (1)Ambient Temperature under bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0V to +6.5V; (4)Voltage on MCLR with respect to VSS: 0V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.6V to (VDD + 0.6V); (6)Total power dissipation: 800 mW; (7)Max. current out of VSS pin: 150 mA; (8)Max. current into VDD pin: 100 mA; (9)Max. current into an input pin (T0CKI only): ±500μA; (10)Input clamp current: ±20 mA; (11)Output clamp current: ±20 mA; (12)Max. output current sunk by any I/O pin: 25 mA; (13)Max. output current sourced by any I/O pin: 25 mA; (14)Max. output current sourced by a single I/O port (PORTA, B or C): 50 mA; (15)Max. output current sunk by a single I/O port (PORTA, B or C): 50 mA.
Features
PIC16F54-I/P features: (1)High-Performance RISC CPU; (2)Power-on Reset (POR); (3)Device Reset Timer (DRT); (4)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (5)Programmable Code Protection; (6)Power-Saving Sleep mode; (7)Selectable oscillator options; (8)Wide operating voltage range; (9)8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler.

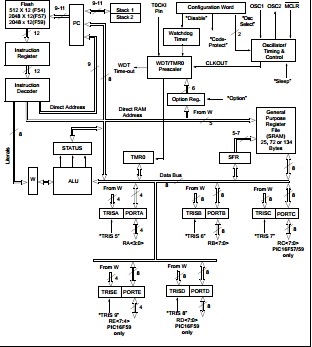

Diagrams
