Product Summary

The PIC12F615-I/P is an 8-Pin flash-based, 8-Bit CMOS microcontroller.

Parametrics

PIC12F615-I/P absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation(1): 800 mW; (7)Maximum current out of VSS pin: 95 mA; (8)Maximum current into VDD pin: 95 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by GPIO: 90 mA; (14)Maximum current sourced GPIO: 90 mA.

Features

PIC12F615-I/P features: (1)Industrial and Extended Temperature range; (2)Power-on Reset (POR); (3)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (4)Brown-out Reset (BOR); (5)Watchdog Timer (WDT) with independent oscillator for reliable operation; (6)Multiplexed Master Clear with pull-up/input pin; (7)Programmable code protection; (8)High Endurance Flash: 100,000 write Flash endurance.

Diagrams

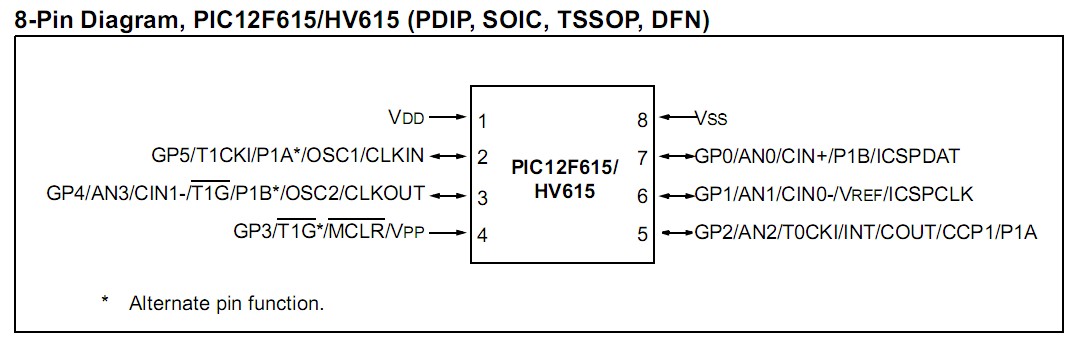

PIC12F615-I/P pin diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC12F615-I/P
PIC12F615-I/P

Microchip Technology

8-bit Microcontrollers (MCU) 1.75KB Flash 8MHz INTERN OSCILATR

Data Sheet

0-1: $0.64
1-10: $0.51
10-25: $0.47
25-100: $0.42
