Product Summary
The PESD12VL1BA,115 is a Bidirectional ElectroStatic Discharge (ESD) protection diode in a very small SOD323 (SC-76) SMD plastic package designed to protect one signal line from the damage caused by ESD and other transients. The applications of the PESD12VL1BA,115 include Computers and peripherals, Data lines, Communication systems, CAN bus protection, Audio and video equipment.
Parametrics
PESD12VL1BA,115 absolute maximum ratings: (1)Ppp peak pulse power: 200W; (2)Ipp peak pulse current: 5A; (3)Tj junction temperature: 150℃; (4)Tamb ambient temperature: -65 to +150℃; (5)Tstg storage temperature: -65 to +150℃.
Features
PESD12VL1BA,115 features: (1)Bidirectional ESD protection of one line; (2)ESD protection > 23 kV; (3)Max. peak pulse power: Ppp = 500 W; (4)IEC 61000-4-2, level 4 (ESD); (5)Low clamping voltage: V(CL)R = 26 V; (6)IEC 61000-4-5 (surge); Ipp = 18 A; (7)Ultra low leakage current: IRM＜0.09 mA; (8)Very small SMD plastic package.

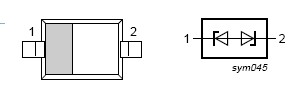

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PESD12VL1BA,115 |
NXP Semiconductors |
TVS Diodes - Transient Voltage Suppressors 12V BIDIRECTIONL ESD |
Data Sheet |
|
|
||||||||||||
