Product Summary

The PCM1754DBQR is a sampling enhancde multi-level, delta-sigma, audio digital-to-analog converter. Its applications include A/V receivers, DVD movie players, DVD add-on cards for high-end PCs, DVD audio players, HDTV receivers, car audio systems, other applications requiring 24-bit audio.

Parametrics

PCM1754DBQR absolute maximum ratings: (1)Supply voltage, VCC: -0.3 to 6.5V; (2)Ground voltage difference: AGND, DGND: ±0.1V; (3)Input voltage: -0.3 to 6.5V; (4)Input current: ±10mA; (5)Ambient temperature under bias: -40 to 125℃; (6)Storage temperature: -55 to 150℃; (7)Junction temperature: 150℃; (8)Lead temperature: 260℃; (9)Package temperature: 260℃.

Features

PCM1754DBQR features: (1)24bit resolution; (2)Analog performance, dynamic range: 106dB; (3)System clock; (4)Software control; (5)Hardware control.

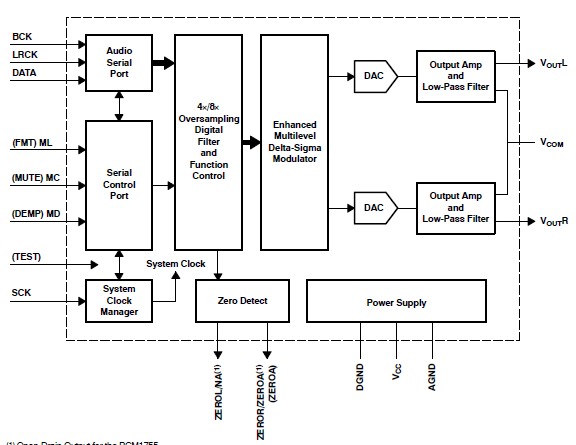

Diagrams

PCM1754DBQ pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PCM1754DBQ
PCM1754DBQ
Texas Instruments
Audio D/A Converter ICs 24-Bit 192kHz Stereo Audio DAC
Data Sheet
0-1: $1.49
1-25: $1.35
25-100: $1.22
100-250: $1.12
PCM1754DBQG4
PCM1754DBQG4
Texas Instruments
Audio D/A Converter ICs 24-Bit 192kHz Stereo Audio DAC
Data Sheet
0-1: $1.49
1-25: $1.35
25-100: $1.22
100-250: $1.12
PCM1754DBQR
PCM1754DBQR
Texas Instruments
Audio D/A Converter ICs 24-Bit 192kHz Stereo Audio DAC
Data Sheet
0-1: $1.58
1-25: $1.26
25-100: $1.01
100-250: $0.84
PCM1754DBQRG4
PCM1754DBQRG4
Texas Instruments
Audio D/A Converter ICs 24-Bit 192kHz Stereo Audio DAC
Data Sheet
0-1430: $0.71
1430-2000: $0.68
2000-5000: $0.65
5000-10000: $0.63
