PCK3807AD

PCK3807AD, low skew clock driver, 4.6 V, 60 mA, 3.5 ns, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: PCK3807AD

Brand:: NXP - NXP | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-01

From Other Seller

Part Number:PCK3807AD
US $1.00 - 3.00
Quantity:

piece

Product Summary

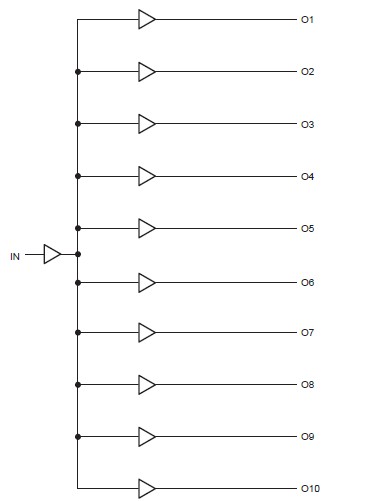

The PCK3807AD low skew clock driver offers 1:10 fan-out. The large fan out from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. The PCK3807AD offers low capacitance inputs with hysteresis for improved noise margins. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.

Parametrics

PCK3807AD absolute maximum ratings: (1)VTERM 2 Terminal voltage with respect to GND: -0.5 to +4.6 V; (2)VTERM 3 Terminal voltage with respect to GND: -0.5 to +7 V; (3)VTERM 4 Terminal voltage with respect to GND: -0.5 to VCC +0.5 V; (4)Tstg Storage temperature: -65 to +150 °C; (5)IO DC output current: -60 to +60 mA.

Features

PCK3807AD features: (1)Low output skew < 120 ps (max); (2)Very low duty cycle distortion < 200 ps (max)for VCC = 2.5 V; (3)High speed: propagation delay < 3.5 ns (max); (4)Very low CMOS power levels; (5)TTL compatible inputs and outputs; (6)1:10 fanout; (7)Maximum output rise and fall times < 1.5 ns; (8)Low input capacitance: 2.5 pF typical; (9)VCC = 2.3 V to 3.6 V; (10)Overvoltage tolerance on inputs; (11)Available in SSOP, TSSOP, SO and QSOP packages; (12)>150 MHz operation.
