Product Summary

The PCI6466-CB66BIG is a 64-Bit PCI-to-PCI bridge designed for high performance, high availability applications, frequency conversions from a faster PCI to a slower PCI bus, address remapping, high availability hot swap, and universal systemto- system bridging. The PCI6466-CB66BIG includes sophisticated buffer management and buffer configuration options designed to provide customizable performance for efficient processor bridging. The PCI6466-CB66BIG allows up to 2KB prefetch during each PCI read and timed FIFO flush management.

Parametrics


Features

PCI6466-CB66BIG features: (1)PCI r3.0 capable; (2)CompactPCI Hot Swappable; (3)Asynchronous Bridging to 66MHz; (4)5V signal input tolerance and 5V signal to 3.3V signal conversions; (5)27mm x 27mm PBGA; (6)10KB FIFO size; (7)Transparent and Non-Transparent Bridge Function; (8)Support for 8 Bus Masters; (9)Usable in CPCI System Slot or Peripheral Slot.

Diagrams

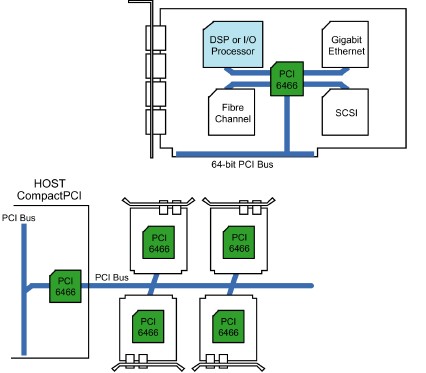

PCI6466-CB66BIG pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PCI6466-CB66BIG
PCI6466-CB66BIG
PLX Technology
Interface Development Tools PCI to PCI Bridge 64 Bit 66MHz
Data Sheet
0-25: $28.49
25-50: $26.73
50-100: $24.97
