PCA9545APW, 4-channel I2C switch with interrupt logic and reset, 7.0V, 25mA, 400mW, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: PCA9545APW

Brand:: NXP - NXP | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-02

From Other Seller

Part Number:PCA9545APW
US $1.00 - 3.00
Quantity:

piece

Product Summary

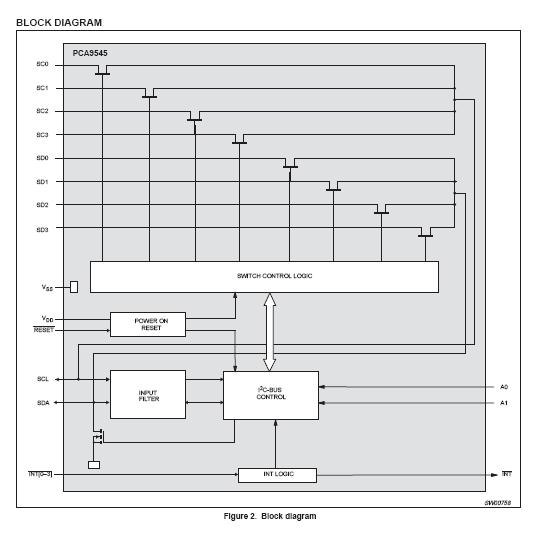

The PCA9545APW is a 4-channel I2C switch with interrupt logic and reset. The SCL/SDA upstream pair fans out to four downstream pairs, or channels. Any individual SCx/SDx channel or combination of channels can be selected, determined by the contents of the programmable control register. Four interrupt inputs, INT0 to INT3, one for each of the downstream pairs, are provided. One interrupt output, INT, acts as an AND of the four interrupt inputs.

Parametrics

PCA9545AZQNR absolute maximum ratings: (1)VDD DC supply voltage: –0.5V to +7.0V; (2)VI DC input voltage: –0.5V to +7.0V; (3)II DC input current: ±20mA; (4)IO DC output current: ±25mA; (5)IDD DC Supply current: 100mA; (6)ISS DC Supply current: ±100mA; (7)Ptot total power dissipation: 400mW; (8)Tstg Storage temperature range: –60℃ to +150℃; (9)Tamb Operating ambient temperature: –40℃ to +85℃.
