PCA9536D

PCA9536D, 4-bit I/O expander, 6 V, 50 mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: PCA9536D

Brand:: NXP Semiconductors - nxp | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:PCA9536D
US $0.30 - 0.50
Quantity:

piece

Product Summary

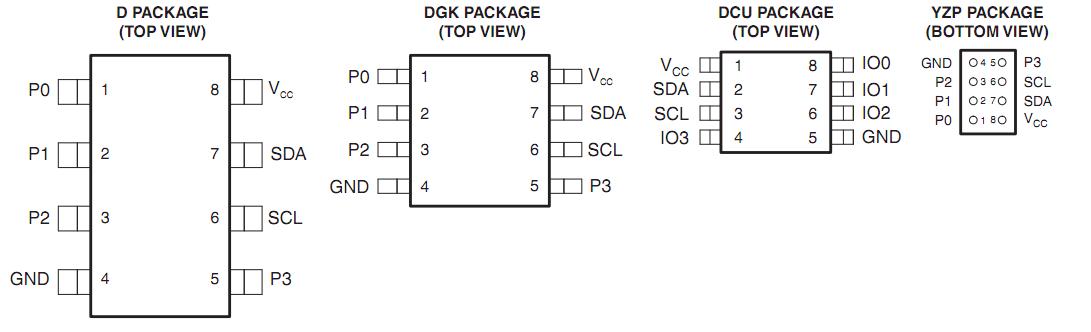

The PCA9536D is a 4-bit I/O expander for the two-line bidirectional bus (I2 C) is designed for 2.3-V to 5.5-V V CC operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I2 C interface [serial clock (SCL), serial data (SDA)].

Parametrics

PCA9536D absolute maximum ratings: (1)VCC, Supply voltage range: – 0.5 to 6 V; (2)VI, Input voltage range:– 0.5 to 6 V; (3)VO, Output voltage range:– 0.5 to 6 V; (4)IIK Input clamp current: 20 mA; (5)I OK Output clamp current: – 20 mA; (6)I IOK Input/output clamp current: ± 20 mA; (7)I OL Continuous output low current: 50 mA; (8)I OH Continuous output high current: 50 mA; (9)T stg Storage temperature range: – 65 to 150℃.

Features

PCA9536D features: (1)Available in the Texas Instruments NanoFree Package; (2)Low Standby Current Consumption of 1 μ A Max; (3)I2 C to Parallel Port Expander; (4)Operating Power-Supply Voltage Range of 2.3 V to 5.5 V; (5)5-V Tolerant I/O Ports; (6)400-kHz Fast I2 C Bus; (7)Input/Output Configuration Register; (8)Polarity Inversion Register; (9)Internal Power-On Reset; (10)No Glitch on Power Up; (11)Power-Up With All Channels Configured as Inputs; (12)Noise Filter on SCL/SDA Inputs; (13)Latched Outputs With High-Current Drive; (14)Maximum Capability for Directly Driving LEDs; (15)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (16)ESD Protection Exceeds JESD 22.
