Product Summary

The OPA358AIDCKR is a high-speed amplifier which is optimized for 3V single-supply operation. The output typically swings within 5mV of GND with a 150Ω load connected to GND. The input common-mode range includes GND and swings to within 1V of the positive power supply. The OPA358AIDCKR offers excellent video performance: 0.5dB gain flatness is 25MHz, differential gain is 0.3%. Applications include digital still cameras, camera phones, digital media players, digital video cameras, set-top-box video filters, optical power monitoring, transimpedance amplifiers and automatic test equipment.

Parametrics

OPA358AIDCKR absolute maximum ratings: (1)Supply Voltage, V+ to V-: +3.6V; (2)Signal Input Terminals: (V-)-0.5V to (V+)+0.5V; (3)Signal Input Terminals: ±10mA; (4)Output Short-Circuit: Continuous; (5)Operating Temperature: -40℃ to +85℃; (6)Storage Temperature: -65℃ to +150℃; (7)Junction Temperature: +160℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

OPA358AIDCKR features: (1)high bandwidth: 80MHz; (2)high slew rate: 55v/μs; (3)excellent video performance; (4)0.5db gain flatness: 25MHz; (5)differential gain: 0.3%; (6)differential phase: 0.7%; (7)input range includes ground; (8)rail-to-rail output; (9)shutdown current: < 5μA; (10)low quiescent current: 5.2mA; (11)single-supply operating range: +2.7v to +3.3v; (12)microsize package: sc70-6.

Diagrams

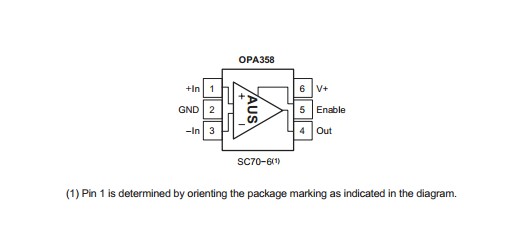

OPA358AIDCKR PIN CONFIGURATIONS
