OPA2725AIDRG4

OPA2725AIDRG4, op amp, 13.2V, 10mA, 20MHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: OPA2725AIDRG4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-01

From Other Seller

Part Number:OPA2725AIDRG4
US $1.00 - 3.00
Quantity:

piece

Product Summary

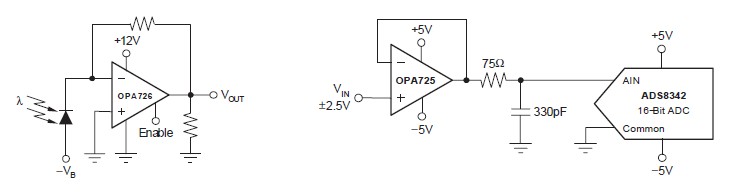

The OPA2725AIDRG4 op amp uses a state-of-the-art 12V analog CMOS process, and combine outstanding ac performance with low bias current and excellent CMRR, PSRR, and AOL. The OPA2725AIDRG4 is achieved by using a proprietary and patent-pending output stage design. These characteristics of the OPA2725AIDRG4 allow excellent 16-bit settling times for driving 16-bit Analog-to-Digital converters (ADCs). Applications are (1)optical networking; (2)transimpedance amplifiers; (3)integrators; (4)active filters; (5)a/d converter buffers; (6)i/v converter for dacs; (7)portable audio; (8)process control; (9)test equipment.

Parametrics

OPA2725AIDRG4 absolute maximum ratings: (1)Supply Voltage: +13.2V; (2)Signal Input Terminals, Voltage: −0.5V to (V+)+ 0.5V; (3)Current: ±10mA; (4)Output Short Circuit: Continuous; (5)Operating Temperature: −55°C to +125°C; (6)Storage Termperature: −55°C to +150°C; (7)Junction Temperature: +150°C; (8)Lead Temperature (soldering, 10s): +300°C; (9)ESD Rating (Human Body Model): 1000 V.

Features

OPA2725AIDRG4 features: (1)bandwidth: 20MHz; (2)slew rate: 30V/μs; (3)fast 16-bit settling time; (4)low noise: 6nV/√Hz (typ)at 100kHz; (5)excellent CMRR, PSRR, and AOL; (6)rail-to-rail output; (7)CM range includes GND; (8)THD+N: 0.0003% (typ)at 1kHz; (9)quiescent current: 5.5mA/ch (max); (10)supply voltage: 4V to 12V; (11)shutdown mode (OPAx726): 6μA/ch.
