Product Summary

The OP27AZ is a precision operational amplifier which combines the lowoffset and drift of the OP27AZ with both high speed and low noise. Offsets down to 25μV and drift of 0.6 μV/℃ maximum make the OP27AZ ideal for precision instrumentation applications. The output stage has good load driving capability. A guaranteedswing of ±10 V into 600Ω and low output distortion make the OP27AZ an excellent choice for professional audio applications.

Parametrics

OP27AZ absolute maximum ratings: (1)Supply Voltage: ±22 V; (2)Input Voltage1: ±22 V; (3)Output Short-Circuit Duration: Indefinite; (4)Differential Input Voltage2:±0.7 V; (5)Differential Input Current2: ±25 mA; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature Range (Soldering, 60 sec): 300℃; (8)Junction Temperature: –65℃ to +150℃.

Features

OP27AZ features: (1)Low Noise; (2)Low Drift; (3)High Speed; (4)Low VOS: 10V; (5)High Open-Loop Gain: 1.8 Million; (6)Fits 725, OP07, 5534A Sockets; (7)Available in Die Form.

Diagrams

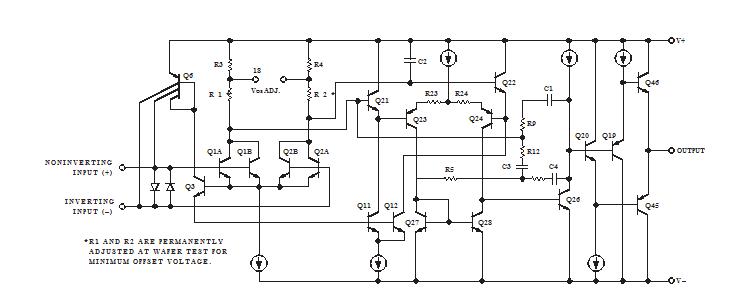

OP27AZ Simplified Schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP27AZ
OP27AZ

IC OPAMP GP 8MHZ LN PREC 8CDIP
Data Sheet
0-1: $24.20
1-10: $22.64
10-100: $19.63
100-250: $18.32
250-500: $17.45
