NAND04GW3B2DN6F

high density NANDnflash memory, 4.6V, 20mA, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	6.00 / Piece
101 ~ 1000 :	5.00 / Piece
1001 ~ 10000 :	4.50 / Piece

PartNumber:: NAND04GW3B2DN6F

Brand:: STMicroelectronics - ST | Pack: TSOP | D/C: 13+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-28

From Other Seller

Part Number:NAND04GW3B2DN6F
US $4.50 - 6.00
Quantity:

piece

Product Summary

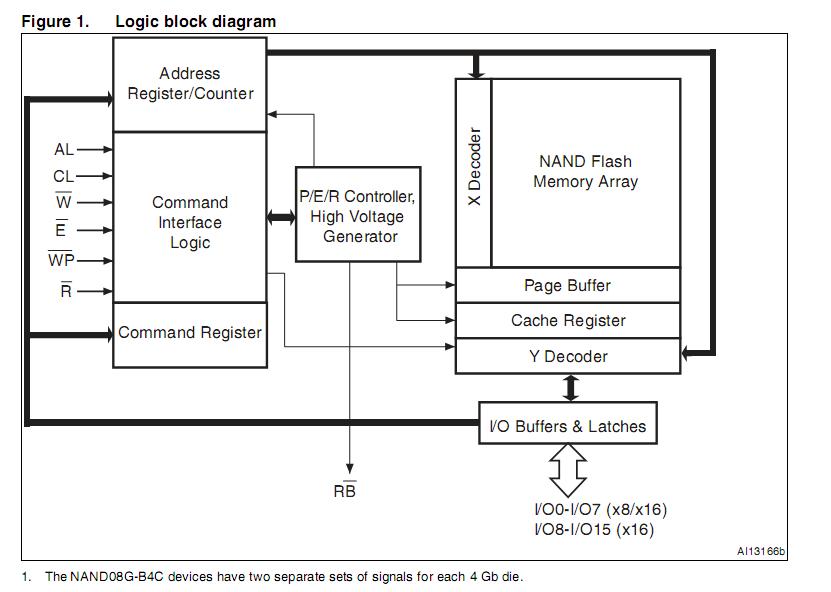

The nana04gw3b2dn6f is an NAND flash 2112 byte/1056 word page of non-volatile flash memory. The nana04gw3b2dn6f uses NAND cell technology has a density of 4 Gbits and 8 Gbits, respectively. The nana04gw3b2dn6f is split into 2 planes of 2048 blocks each. In the nana04gw3b2dn6f, only one of the memory components can be enabled at a time, therefore, operations can only be performed on one of the memory components at any one time. The nana04gw3b2dn6f features an open-drain ready/busy output that identifies if the P/E/R (program/erase/read) Controller is currently active.

Parametrics

nana04gw3b2dn6f absolute maximum ratings: (1) Temperature under bias TBIAS: -50 to 125°C; (2) Storage temperature TSTG: -65 to 150°C; (3) Input or output voltage VIO: -0.6 to 4.6V; (4) Supply voltage VDD: -0.6 to 4.6V.

Features

nana04gw3b2dn6f features: (1) High density NAND Flash Memory: Up to 8 Gbit memory array, CCost-effective solution for mass storage applications; (2) NAND interface; (3) Supply voltage: 1.8 V or 3.0 V device; (4) Page size: x8 device: (2048 + 64 spare) byte, Cx16 device: (1024 + 32 spare) word; (5) Block size: Cx8 device: (128K + 4 K spare) byte, Cx16 device: (64K + 2 K spare) word; (6) Multiplane architecture; (7) Page read/program; (8) Copy back program with automatic error detection code (EDC) ; (9) Cache read mode; (10) Fast block erase; (11) Electronic signature NAND08GR3B4C; (12) Serial number option; (13) Data protection; (14) ONFI 1.0 compliant command set; (15) Data integrity; (16) ECOPACK packages.
