Product Summary
The N74F125D is a Quad buffer. The 74F125D provides four non-inverting buffer/line drivers with 3-state outputs. The 3-state outputs (nY) are controlled by the output enable input (nOE). A HIGH at nOE causes the outputs to assume a high-impedance OFF-state.
Parametrics
N74F125D absolute maximum ratings: (1)VCC supply voltage: -0.5 to +7.0V; (2)VI input voltage: -0.5 to +7.0V; (3)VO output voltage output in HIGH-state: -0.5 to VCC V; (4)IIK input clamping current VI < 0 V: -30 to +5mA; (5)IO output current output in LOW-state: -128mA; (6)Tamb ambient temperature in free air: 0 to 70 C; (7)Tstg storage temperature: -65 to +150 C.
Features
N74F125D features: (1)High impedance NPN base inputs for reduced loading (20 uA in HIGH and LOW states).

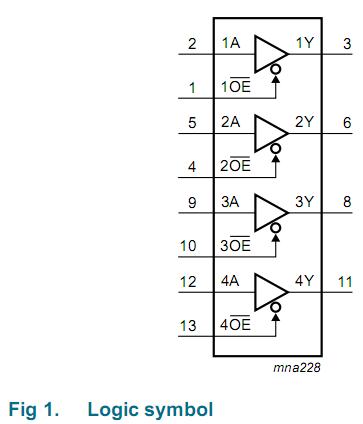

Diagrams
