Product Summary

The MX29LV161DBTI-90G is a 16-mega bit Flash memory organized as 2M bytes of 8 bits or 1M words of 16 bits. MXIC’s Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29LV161DBTI-90G is packaged in 44-pin SOP, 48-pin TSOP, and 48CSP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.

Parametrics

MX29LV161DBTI-90G absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground, VCC: -0.5 V to +4.0 V; A9, OE, and RESET: -0.5 V to +12.5 V; All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

MX29LV161DBTI-90G features: (1)Extended single - supply voltage range 2.7V to 3.6V; (2)2,097,152 x 8/1,048,576 x 16 switchable; (3)Single power supply operation, 3.0V only operation for read, erase and program operation; (4)Fast access time: 70/90ns; (5)Low power consumption, 20mA maximum active current; 0.2uA typical standby current; (6)Command register architecture, Byte/word Programming (9us/11us typical); Sector Erase (Sector structure 16K-Bytex1, 8K-Bytex2, 32K-Bytex1, and 64K-Byte x31); (7)Auto Erase (chip & sector) and Auto Program, Automatically erase any combination of sectors with Erase Suspend capability; Automatically program and verify data at specified address; (8)Erase suspend/Erase Resume, Suspends sector erase operation to read data from, or program data to, any sector that is not being erased, then resumes the erase.

Diagrams

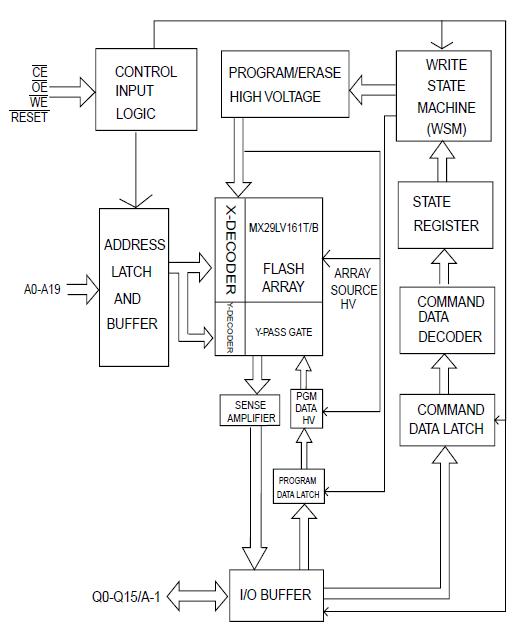

MMX29LV161DBTI-90G block diagram
