MX29LV040CTI-70G

MX29LV040CTI-70G, 4-mega bit Flash memory, TSOP, -0.5 V to +4.0 V, 200mA, Macronix International

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.80 / Piece
1000 ~ 10000 :	0.60 / Piece
10000 ~ 110000 :	0.50 / Piece

PartNumber:: MX29LV040CTI-70G

Brand:: Macronix International - MXIC | Pack: TSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-28

From Other Seller

Part Number:MX29LV040CTI-70G
US $0.50 - 0.80
Quantity:

piece

Product Summary

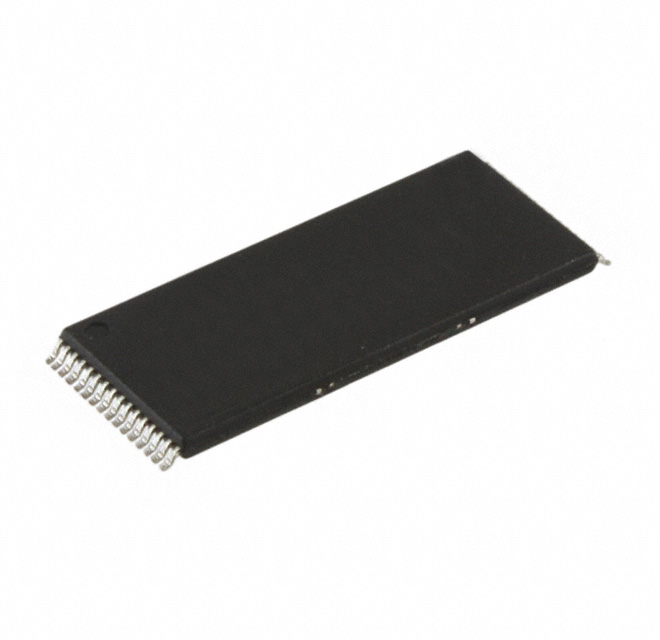

The MX29LV040CTI-70G is a 4-mega bit Flash memory organized as 512K bytes of 8 bits. MXIC’s Flash memories offer the most cost-effective and reliable read/write nonvolatile random access memory. The MX29LV040CTI-70G is packaged in 32-pin PLCC and TSOP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.

Parametrics

MX29LV040CTI-70G absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground, VCC: -0.5 V to +4.0 V; A9, OE#, and All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

MX29LV040CTI-70G features: (1)Extended single - supply voltage range 2.7V to 3.6V; (2)524,288 x 8 only; (3)Single power supply operation, 3.0V only operation for read, erase and program operation; (4)Fully compatible with MX29LV040 device; (5)Fast access time: 55R/70/90ns; (6)Low power consumption, 30mA maximum active current; 0.2uA typical standby current; (7)Command register architecture, 8 equal sector of 64K-Byte each; Byte Programming (9us typical); Sector Erase (Sector structure 64K-Byte x8); (8)Auto Erase (chip & sector) and Auto Program, Automatically erase any combination of sectors with Erase Suspend capability, Automatically program and verify data at specified; (9)address; (10)Erase suspend/Erase Resume, Suspends sector erase operation to read data from, or program data to, any sector that is not being erased, then resumes the erase.
