Product Summary

The MX29LV008C T/B is a 8-mega bit Flash memory
organized as 1M bytes of 8 bits. MXIC's Flash memories
offer the most cost-effective and reliable read/write
non-volatile random access memory. The MX29LV008C
T/B is packaged in 40-pin TSOP. It is designed to be
reprogrammed and erased in system or in standard
EPROM programmers

Features

? Extended single - supply voltage range 2.7V to 3.6V
? 1,048,576 x 8
? Single power supply operation
- 3.0V only operation for read, erase and program
operation
? Fast access time: 55R/70/90ns
? Fully compatible with MX29LV008BT/BB device
? Low power consumption
- 20mA maximum active current
- 0.2uA typical standby current
? Command register architecture
- Byte Programming (7us typical)
- Sector Erase (Sector structure 16K-Bytex1,
8K-Bytex2, 32K-Bytex1, and 64K-Byte x15)
? Auto Erase (chip & sector) and Auto Program
- Automatically erase any combination of sectors with
Erase Suspend capability.

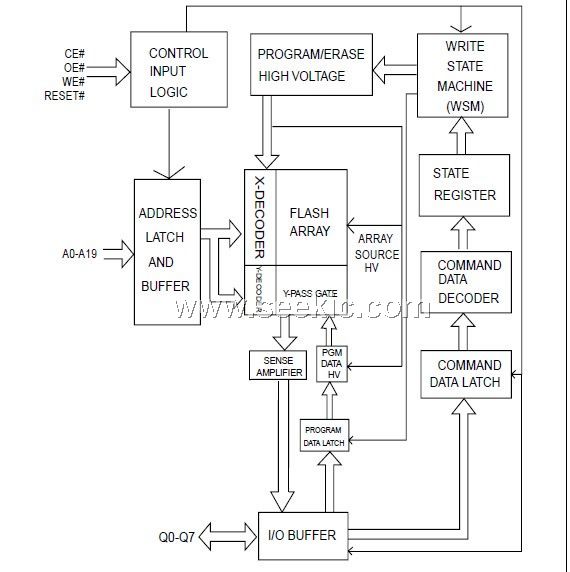

Diagrams
