Product Summary
The MX29GL512FLT2I-10Q is a 128-mega bit Flash memory organized as 16M bytes of 8 bits or 8M words of 16 bits. MXIC’s Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29GL512FLT2I-10Q is packaged in 56-pin TSOP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.
Parametrics
MX29GL512FLT2I-10Q absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground, VCC (Note 1): -0.5 V to +4.0 V; A10, OE#, and RESET#: -0.5 V to +12.5 V; All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
MX29GL512FLT2I-10Q features: (1)Single Power Supply Operation, 2.7 to 3.6 volt for read, erase, and program operations; (2)Configuration, 16,777,216 x 8 / 8,388,608 x 16 switchable; (3)Sector structure, 64KB(32KW) x 256; (4)Latch-up protected to 250mA from -1V to VCC + 1V; (5)Low VCC write inhibit is equal to or less than 1.5V; (6)Compatible with JEDEC standard, Pin-out and software compatible to single power supply Flash.

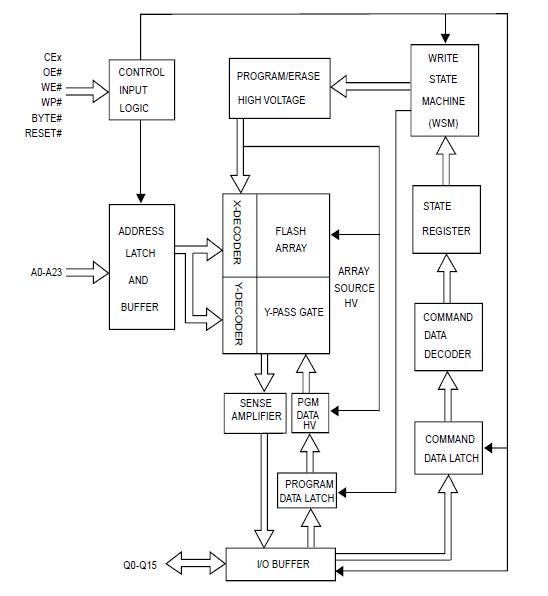

Diagrams
