Product Summary

The MX29GL256FLXFI-90Q is a 128-mega bit Flash memory organized as 16M bytes of 8 bits or 8M words of 16 bits. MXIC’s Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The MX29GL256FLXFI-90Q is packaged in 56-pin TSOP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.

Parametrics

MX29GL256FLXFI-90Q absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground, VCC (Note 1): -0.5 V to +4.0 V; A10, OE#, and RESET#: -0.5 V to +12.5 V; All other pins: -0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.

Features

MX29GL256FLXFI-90Q features: (1)Single Power Supply Operation, 2.7 to 3.6 volt for read, erase, and program operations; (2)Configuration, 16,777,216 x 8 / 8,388,608 x 16 switchable; (3)Sector structure, 64KB(32KW) x 256; (4)Latch-up protected to 250mA from -1V to VCC + 1V; (5)Low VCC write inhibit is equal to or less than 1.5V; (6)Compatible with JEDEC standard, Pin-out and software compatible to single power supply Flash.

Diagrams

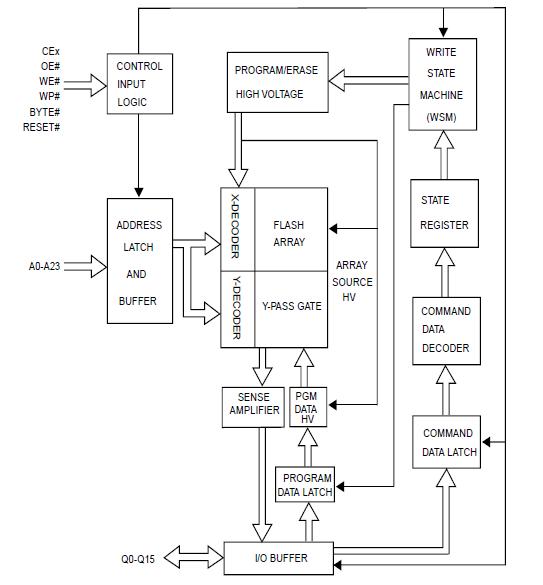

MX29GL256FLXFI-90Q block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MX29GL256FLXFI-90Q
MX29GL256FLXFI-90Q


IC FLASH MEM 256MB 90NS 64LFBGA

Data Sheet

0-1: $3.29
1-10: $3.00
10-50: $2.92
50-100: $2.62
100-250: $2.61
250-500: $2.45
500-1000: $2.34
1000-2500: $2.27
2500-5000: $2.09
