Product Summary

The MX25L6445EM2I-10G is a 67,108,864 bits serial Flash memory, which is configured as 8,388,608 × 8 internally. When it is in two or four I/O mode, the structure becomes 33,554,432 bits × 2 or 16,777,216 bits × 4. The MX25L6445EM2I-10G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is ena-bled by CS# input.

Parametrics

MX25L6445EZNI-10G absolute maximum ratings: (1)Ambient Operating Temperature Industrial grade: -40 to 85℃; (2)Storage Temperature: -65 to 150℃; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L6445EZNI-10G features: (1)Serial Peripheral Interface compatible - Mode 0 and Mode 3; (2)64Mb: 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (two I/O mode) structure or 16,777,216 x 4 bits (four I/O mode) structure; (3)2048 Equal Sectors with 4K bytes each - Any Sector can be erased individually; (4)256 Equal Blocks with 32K bytes each - Any Block can be erased individually; (5)128 Equal Blocks with 64K bytes each - Any Block can be erased individually; (6)Latch-up protected to 100mA from -1V to Vcc +1V.

Diagrams

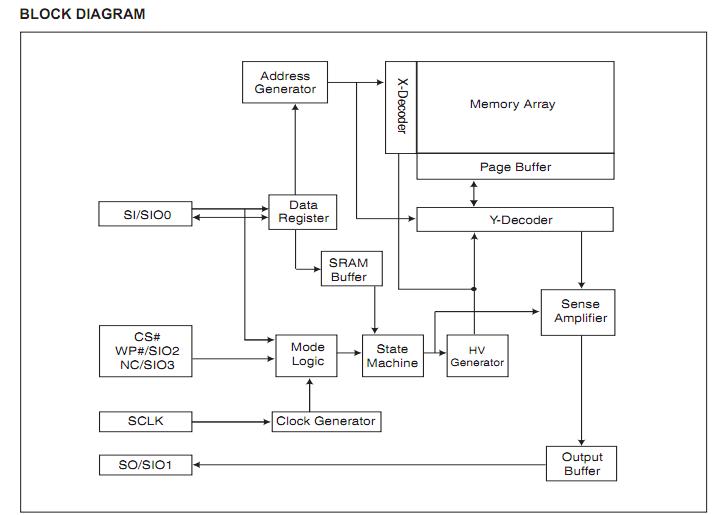

MX25L6445EZNI-10G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MX25L6445EZNI-10G
MX25L6445EZNI-10G


IC FLASH SER 64MB 104MHZ 8WSON

Data Sheet

0-1: $1.39
1-10: $1.25
10-50: $1.23
50-100: $1.10
100-250: $1.06
250-500: $1.06
500-1000: $0.98
1000-2500: $0.97
2500-5000: $0.89
