Product Summary

The MX25L1606EM1I-12G is a CMOS 16,777,216 bit serial Flash EEPROM, which is configured as 2,097,152 × 8 internally. It features a serial peripheral interface and software protocol allowing operation on a simple 3- wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). SPI access to the device is enabled by CS input. The MX25L1606EM1I-12G provides sequential read operation on whole chip. It utilizes the proprietary memory cell which reliably stores memory contents even after 100,000 program and erase cycles.

Parametrics

MX25L1606EM1I-12G absolute maximum ratings: (1)Ambient Operating Temperature: 0℃ to 70℃; (2)Storage Temperature: -55℃ to 125℃; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L1606EM1I-12G features: (1)16,777,216 x 1 bit structure; (2)256 Equal Sectors with 8K-byte each- Any sector can be erased; (3)4096 Equal Segments with 512-byte each- Provides sequential output within any segment; (4)Single Power Supply Operation- 3.0 to 3.6 volt for read, erase, and program operations; (5)Latch-up protected to 100mA from -1V to Vcc +1V; (6)Low Vcc write inhibit is equal to or less than 2.5V.

Diagrams

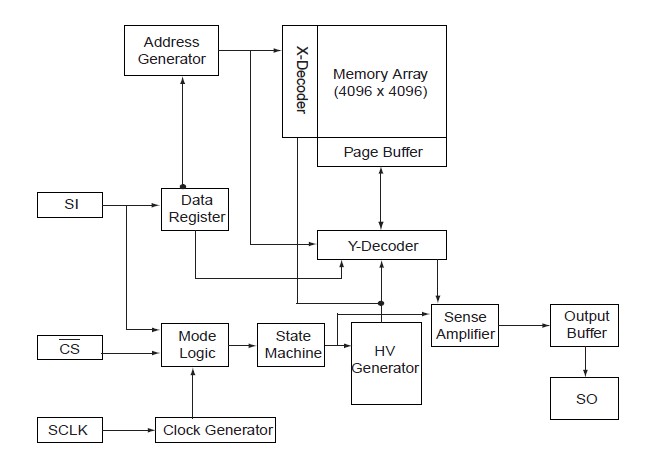

MX25L1606EM1I-12G block diagram
