MSP430FG4618IPZR

MSP430FG4618IPZR, mixed signal microcontroller, QFP, -0.3 V to 4.1 V, ±2 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	10.00 / Piece
501 ~ 1000 :	9.00 / Piece
1001 ~ 3000 :	7.00 / Piece

PartNumber:: MSP430FG4618IPZR

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:MSP430FG4618IPZR
US $7.00 - 10.00
Quantity:

piece

Product Summary

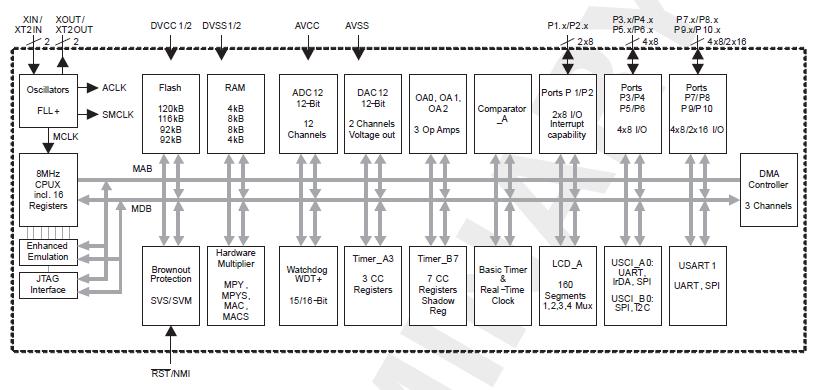

The MSP430FG4618IPZR is an ultralow power microcontroller consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430FG4618IPZR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs.

Parametrics

MSP430FG4618IPZR absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg: (unprogrammed device): -55℃ to 150℃; (5)(programmed device): -40℃ to 85℃.

Features

MSP430FG4618IPZR features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultralow-Power Consumption: Active Mode: 350 μA at 1 MHz, 2.2 V; Standby Mode: 1.1 μA; Off Mode (RAM Retention): 0.3 μA; (3)Five Power Saving Modes; (4)Wake-Up From Standby Mode in less than 6 μs; (5)16-Bit RISC Architecture, Extended Memory, 125-ns Instruction Cycle Time; (6)Three Channel Internal DMA; (7)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (8)Three Configurable Operational Amplifiers; (9)Dual 12-Bit D/A Converters With Synchronization; (10)16-Bit Timer_A With Three Capture/Compare Registers; (11)16-Bit Timer_B With Seven Capture/Compare-With-Shadow Registers; (12)On-Chip Comparator; (13)Supply Voltage Supervisor/Monitor With Programmable Level Detection; (14)Serial Communication Interface (USART1), Select Asynchronous UART or Synchronous SPI by Software.
