MSP430F5438IPZR

ultralow-power microcontroller, 5 μs, 4.1 V, LQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: MSP430F5438IPZR

Brand:: Texas Instruments - TI | Pack: LQFP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-24

From Other Seller

Part Number:MSP430F5438IPZR
US $0.30 - 0.50
Quantity:

piece

Product Summary

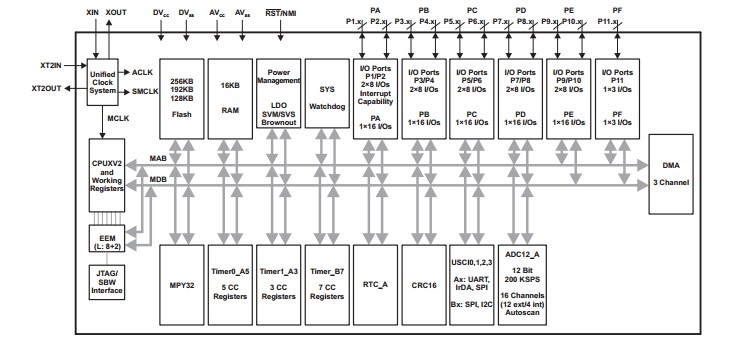

The MSP430F5438IPZR is a ultralow-power microcontroller consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 5 μs. Typical applications for this device include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, hand-held meters, etc.

Parametrics

MSP430F5438IPZR absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin (excluding VCORE): -0.3 V to VCC + 0.3 V; (3)Diode current at any device pin:±2 mA; (4)Storage temperature range-Unprogrammed device: -55℃ to 150℃; (5)Storage temperature range-Programmed devic: -40℃ to 105℃.

Features

MSP430F5438IPZR features: (1)Low Supply-Voltage Range; (2)Ultralow Power Consumption; (3)Wake-Up From Standby Mode in Less Than 5 μs; (4)16-Bit RISC Architecture; (5)Flexible Power Management System; (6)Up to Four Universal Serial Communication Interfaces; (7)Hardware Multiplier Supporting 32-Bit Operations; (8)Basic Timer With Real Time Clock Feature; (9)Three Channel Internal DMA.
