MSP430F169IPMR

Product Summary

The MSP430F169IPMR is a mixed signal microcontroller. The Texas Instruments MSP430F169IPMR family of ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs.

Parametrics

MSP430F169IPMR absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to 4.1 V; (2)Voltage applied to any pin (see Note): -0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg:(unprogrammed device): -55°C to 150°C; (5)Storage temperature, Tstg (programmed device): 40°C to 85°C.

Features

MSP430F169IPMR features: (1)Low Supply-Voltage Range, 1.8 V . . . 3.6 V; (2)Ultralow-Power Consumption: Active Mode: 330 μA at 1 MHz, 2.2 V; (3)Five Power-Saving Modes; (4)Wake-Up From Standby Mode in less than 6 μs; (5)16-Bit RISC Architecture, 125-ns Instruction Cycle Time; (6)Three-Channel Internal DMA; (7)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (8)Dual 12-Bit D/A Converters With Synchronization; (9)16-Bit Timer_A With Three Capture/Compare Registers; (10)16-Bit Timer_B With Three or Seven Capture/Compare-With-Shadow Registers; (11)On-Chip Comparator; (12)Serial Communication Interface (USART0), Functions as Asynchronous UART or Synchronous SPI CTM Interface; (13)Serial Communication Interface (USART1), Functions as Asynchronous UART or Synchronous SPI Interface; (14)Supply Voltage Supervisor/Monitor With Programmable Level Detection; (15)Brownout Detector; (16)Bootstrap Loader; (17)Serial Onboard Programming,; (18)No External Programming Voltage Needed Programmable Code Protection by Security Fuse; (19)Available in 64-Pin Quad Flat Pack (QFP) and 64-pin QFN.

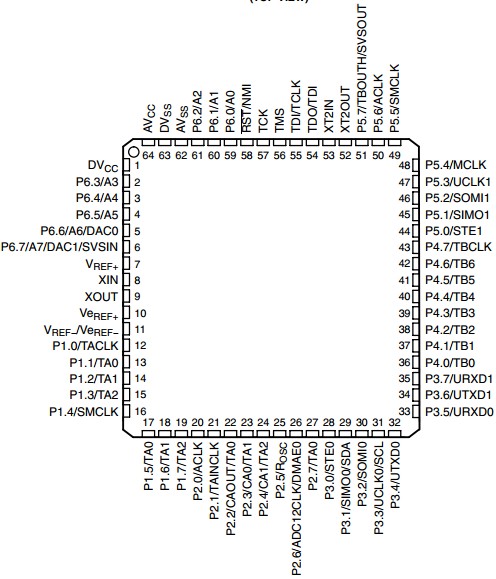

Diagrams
