Product Summary
The MPC82G516AF is a single-chip microcontroller based on a high performance 1-T architecture 80C51 CPU that executes instructions in 1~7 clock cycles (about 6~7 times the rate of a standard 8051 device), and has an 8051 compatible instruction set. Therefore at the same performance as the standard 8051, the MPC82G516AF can operate at a much lower speed and thereby greatly reduce the power consumption.
Parametrics
MPC82G516AF absolute maximum ratings: (1)Operating temperature under bias: -40 ~ +85 ℃; (2)Storage temperature: -55 ~ +125 ℃; (3)Voltage on VDD to VSS: -0.5 ~ +6.5 V; (4)Voltage on any other pin to VSS: -0.5 ~ VDD+0.5 V; (5)Maximum IOL/IOH per output: 20 mA; (6)Maximum total IOL/IOH for all outputs: 100 mA; (7)Power dissipation: 1.5 W.
Features
MPC82G516AF features: (1)SPI Interface (Master/Slave Mode); (2)10-Bit ADC with 8 Multiplexed Analog Inputs; (3)Keypad Interrupt with 8 Inputs; (4)Wake-up from Power-down Mode by an External Interrupt; (5)Three Programmable Clock Outputs; (6)One-time Enabled Watchdog Timer; (7)Dual DPTR; (8)Configurable System Clock for Reduction of Power Consumption; (9)Power Monitoring Functions: Brownout Detection & Power-on Flag; (10)ISP (In-System Programming)& ICP (In-Circuit Programming)to Update Program Memory; (11)IAP (In-Application Programming)Flash for Applications with Non-volatile Data; (12)OCD (On-Chip Debug)Interface for ICE; (13)Flash Endurance: 20,000 Erase/Write cycles; (14)Operating Frequency: Up to 24MHz .

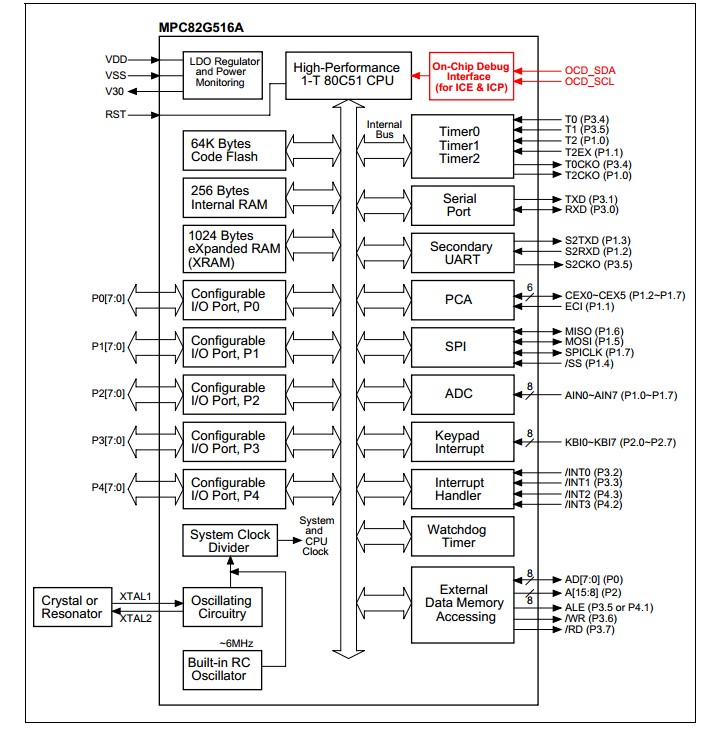

Diagrams
