Product Summary
The MP8802DJ-2.5-LF-Z is a low-noise, low-dropout linear regulator. It operates from 2.7V to 6.5V input voltage, and regulates the output voltage with 2% accuracy at 2.5V, 2.85V, 3.3V, or from 1.25V to 5V. The MP8802DJ-2.5-LF-Z can supply up to 250mA of load current. The MP8802DJ-2.5-LF-Z features thermal overload protection. It is available in a 5-pin TSOT23-5 package. The MP8802DJ-2.5-LF-Z can be applied in 802.11 pc cards, mobile handset pll power, and audio codec power.
Parametrics
MP8802DJ-2.5-LF-Z absolute maximum ratings: (1)IN Supply Voltage: –0.3V to +7.0V ; (2)FB Voltage: –0.3V to VOUT + 0.3V ; (3)All Other Pins: –0.3V to +6V ; (4)Junction Temperature: 150°C; (5)Lead Temperature: 260°C ; (6)Storage Temperature: –65°C to +150°C.
Features
MP8802DJ-2.5-LF-Z features: (1)Low 250mV Dropout at 250mA Output; (2)2% Accurate Output Voltage ; (3)Fixed Output Voltage Options of 2.5V, 2.85V or 3.3V ; (4)Adjustable Output Voltage Option from 1.25V to 5V using an External Resistor Divider ; (5)Up to 6.5V Input Voltage; (6)High PSRR o 70dB at 1KHzo 30dB at 1MHz; (7)Better Than 0.001%/mA Load Regulation; (8)Stable With Low-ESR Output Capacitor ; (9)Low 125μA Ground Current ; (10)Internal Thermal Protection.

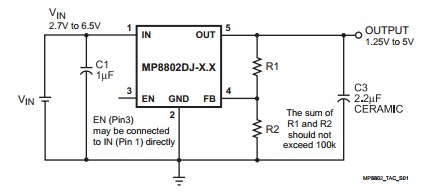

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MP8802DJ-2.5-LF-Z |
Monolithic Power Systems (MPS) |
Low Dropout (LDO) Regulators 250mA Linear Reg 2.5V fixed & adj |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
MP8801 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MP8801DJ-2.5-LF-P |
Monolithic Power Systems (MPS) |
Low Dropout (LDO) Regulators 150mA Linear Reg 2.5V fixed & adj |
Data Sheet |
|
|
||||||||||||
|
MP8801DJ-2.5-LF-Z |
Monolithic Power Systems (MPS) |
Low Dropout (LDO) Regulators 150mA Linear Reg 2.5V fixed & adj |
Data Sheet |
|
|
||||||||||||
|
MP8801DJ-2.85-LF-P |
Monolithic Power Systems (MPS) |
Low Dropout (LDO) Regulators 150mA Linear Reg 2.85V fixed & adj |
Data Sheet |
|
|
||||||||||||
|
MP8801DJ-2.85-LF-Z |
Monolithic Power Systems (MPS) |
Low Dropout (LDO) Regulators 150mA Linear Reg 2.85V fixed & adj |
Data Sheet |
|
|
||||||||||||
|
MP8801DJ-3.3-LF-P |
Monolithic Power Systems (MPS) |
Low Dropout (LDO) Regulators 150mA Linear Reg 3.3V fixed & adj |
Data Sheet |
|
|
||||||||||||
