Product Summary

The MP7782DF is a mono, 50W Class D Audio Amplifier. It is one of MPS’ second generation fully integrated audio amplifiers which dramatically reduces solution size by integrating four 180mΩ power MOSFETs in a space saving TSSOP20 package. The MP7782DF utilizes a full bridge output structure capable of delivering 50W into 6Ω speakers. The applications of the MP7782DF include MP3 Systems, Surround Sound Systems, Multimedia Computers, Televisions, Home Stereos, DVD and VCD Players, Game Devices and Systems, Subwoofers.

Parametrics

MP7782DF absolute maximum ratings: (1)Supply Voltage VDD: 26V; (2)BS Voltage: VSW -0.3V to VSW + 6.5V; (3)Enable Voltage VEN: -0.3V to +6V; (4)VSW, VFB2, VFB1: -1V to VDD + 1V; (5)AGND to PGND: -0.3V to +0.3V; (6)Junction Temperature: 150℃; (7)Lead Temperature: 260℃; (8)Storage Temperature: -65℃ to +150℃.

Features

MP7782DF features: (1)50W into 6Ω with VDD = 24V @10% THD+N; (2)90% Efficiency at 50W; (3)Amplifies Full Audio Range with Low THD+N; (4)THD+N = 0.06% @ 1W; (5)9.5V to 24V Supply Voltage Operation; (6)Full Bridge Output Drive; (7)4 Integrated 180m?Switches; (8)Turn-On / Turn-Off Click and Pop Suppression; (9)Integrated Short Circuit Protection; (10)Integrated Thermal Shutdown; (11)Mute / Standby Mode; (12)Thermally Enhanced 20-Pin TSSOP; (13)Package with Exposed Pad.

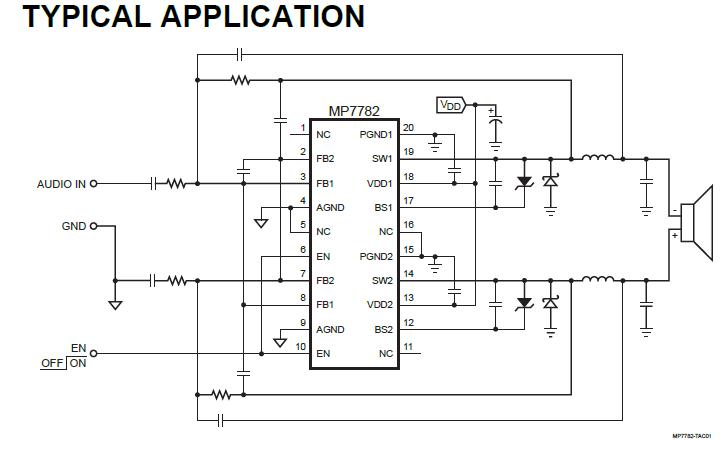

Diagrams

MP7782DF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MP7782DF-LF
MP7782DF-LF
Monolithic Power Systems (MPS)
Audio Amplifiers 50W, Class-D Mono Bridged Audio Amp
Data Sheet
0-1: $2.92
1-25: $2.71
25-100: $2.50
100-500: $2.29
MP7782DF-LF-Z
MP7782DF-LF-Z
Monolithic Power Systems (MPS)
Audio Amplifiers 50W, Class-D Mono Bridged Audio Amp
Data Sheet
0-1755: $2.09
1755-2000: $2.00
2000-2500: $2.00
