Product Summary
The MP3410DJ is a highly efficient, synchronous, fixed frequency, current-mode step-up converter with output to input disconnect, inrush current limiting and internal soft-start. It includes an error amplifier, ramp generator, comparator, N-Channel switch and P-Channel synchronous rectified switch (which greatly improves efficiency). The output disconnect feature allows the output to be completely isolated from the input in shutdown mode. The applications of the MP3410DJ include MP3 Players, Handheld Computers and PDAs, Digital Still and Video Cameras, External Modems, Small LCD Displays.
Parametrics
MP3410DJ absolute maximum ratings: (1)All Pins: -0.3V to +6.5V; (2)Storage Temperature: -65℃ to +150℃; (3)Supply Voltage VIN: 1.8V to 6V; (4)Output Voltage VOUT: 2.5V to 6V; (5)Operating Temperature: -40℃ to +85℃.
Features
MP3410DJ features: (1)Over 90% Efficiency; (2)Output to Input Disconnect at Shutdown Mode; (3)Internal Synchronous Rectifier; (4)Inrush Current Limiting and Internal Soft-Start; (5)Internal Compensation; (6)1.5A Typical Switch Current Limit; (7)500KHz Fixed Switching Frequency; (8)Zero Current Shutdown Mode; (9)Thermal Shutdown; (10)5-Pin TSOT-23 Package.

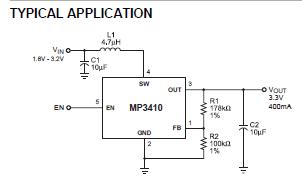

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MP3410DJ-LF-P |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 1.5A 1.8-6V 500kHz Synchronous Step-Up |
Data Sheet |
|
|
||||||||||||
|
MP3410DJ-LF-Z |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 1.5A 1.8-6V 500kHz Synchronous Step-Up |
Data Sheet |
|
|
||||||||||||
