Product Summary
The MP2309DS is a monolithic synchronous buck regulator. The device integrates 140mΩ MOSFETS that provide 1A continuous load current over a wide operating input voltage of 4.75V to 23V. Current mode control provides fast transient response and cycle-by-cycle current limit. The applications of the MP2309DS include distributed power systems, networking systems, fpga, dsp, asic power supplies, green electronics/ appliances and notebook computers.
Parametrics
MP2309DS absolute maximum ratings: (1)Supply Voltage VIN: -0.3V to +26V; (2)Switch Voltage VSW: -1V to VIN +0.3V; (3)Boost Voltage VBS: VSW -0.3V to VSW + 6V; (4)All Other Pins: -0.3V to +6V; (5)Junction Temperature: 150℃; (6)Lead Temperature: 260℃; (7)Storage Temperature: -65 to +150℃.
Features
MP2309DS features: (1)1A Output Current; (2)Wide 4.75V to 23V Operating Input Range; (3)Integrated 140mΩ Power MOSFET Switches; (4)Output Adjustable from 0.923V to 20V; (5)Up to 95% Efficiency; (6)Programmable Soft-Start; (7)Stable with Low ESR Ceramic Output Capacitors; (8)Fixed 340KHz Frequency; (9)Cycle-by-Cycle Over Current Protection; (10)Input Under Voltage Lockout.

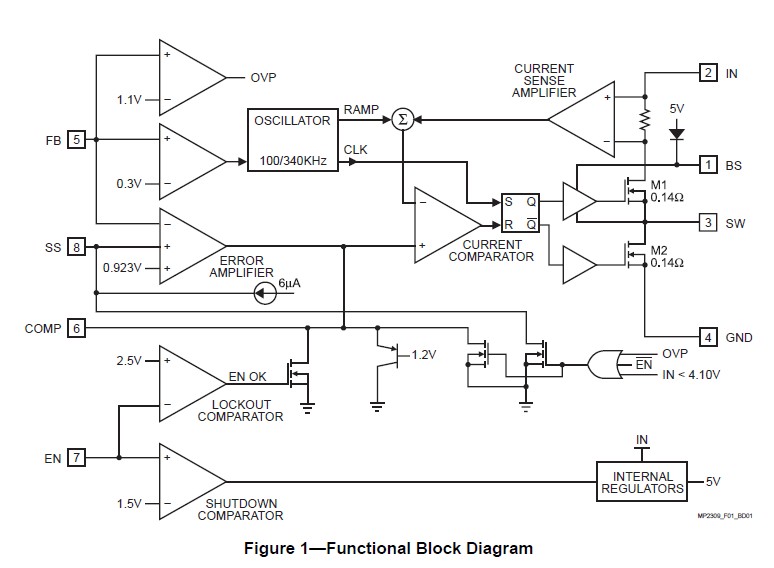

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MP2309DS |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MP2309DS-LF |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 1A/23V Synch Step-Down Converter |
Data Sheet |
|
|
||||||||||||
|
MP2309DS-LF-Z |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 1A/23V Synch Step-Down Converter |
Data Sheet |
|
|
||||||||||||
