Product Summary

The MP2105DJ is a Synchronous Buck Step-Down Converter. It implements the MP2105DJ 1MHz Fixed Frequency, Current Mode, PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipments that runs from a single cell Lithium-Ion (Li+) Battery. The applications of the MP2105DJ include Cellular and Smart Phones, Microprocessors/DSP Core Supplies, PDAs, MP3 Players, Digital Still and Video Cameras, Portable Instruments.

Features

MP2105DJ features: (1)High Efficiency: Up to 95%; (2)800mA Available Load Current; (3)2.5V to 6V Input Voltage Range; (4)Output Voltage as Low as 0.6V; (5)100% Duty Cycle in Dropout; (6)Short Circuit Protection; (7)Thermal Fault Protection; (8)<0.1μA Shutdown Current; (9)Programmable Enable Control.

Diagrams

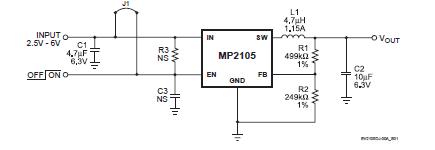

MP2105DJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MP2105DJ-LF-P
MP2105DJ-LF-P
Monolithic Power Systems (MPS)
Switching Converters, Regulators & Controllers 0.8A/6V Synch Step-Down
Data Sheet
0-1: $1.19
1-25: $1.10
25-100: $1.02
100-500: $0.94
