Product Summary
The MP2104DJ is a low dropout step down converter. It implements the MP2104DJ 1.7MHz Fixed Frequency, Current Mode, PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipments that runs from a single cell Lithium-Ion (Li+) Battery. The applications of the MP2104DJ include Cellular and Smart Phones, Microprocessors/DSP Core Supplies, PDAs, MP3 Players, Digital Still and Video Cameras, Portable Instruments.
Features
MP2104DJ features: (1)High Efficiency: Up to 95%; (2)600mA Available Load Current; (3)2.5V to 6V Input Voltage Range; (4)Output Voltage as Low as 0.6V; (5)100% Duty Cycle in Dropout; (6)Short Circuit Protection; (7)Thermal Fault Protection; (8)<0.1μA Shutdown Current; (9)Programmable Enable Control.

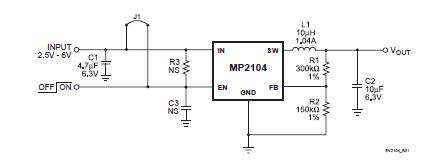

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MP2104DJ-1.5-LF-P |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 0.6A/6V 1.5V fixed Synch Step-Down |
Data Sheet |
|
|
||||||||||||
|
MP2104DJ-1.5-LF-Z |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 0.6A/6V 1.5V fixed Synch Step-Down |
Data Sheet |
|
|
||||||||||||
 |
MP2104DJ-LF-P |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 0.6A/6V Synch Step-Down |
Data Sheet |
|
|
||||||||||||
|
MP2104DJ-1.8-LF-P |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 0.6A/6V 1.8V fixed Synch Step-Down |
Data Sheet |
|
|
||||||||||||
|
MP2104DJ-1.8-LF-Z |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 0.6A/6V 1.8V fixed Synch Step-Down |
Data Sheet |
|
|
||||||||||||
|
MP2104DJ-LF-Z |
Monolithic Power Systems (MPS) |
Switching Converters, Regulators & Controllers 0.6A/6V Synch Step-Down |
Data Sheet |
|
|
||||||||||||
