Product Summary

The MMA7660FCR1 is a ±1.5 g 3-Axis Accelerometer with Digital Output (I2C). The MMA7660FCR1 is a very low power, low profile capacitive MEMS sensor featuring a low pass filter, compensation for 0g offset and gain errors, and conversion to 6-bit digital values at a user configurable samples per second. The MMA7660FCR1 can be used for sensor data changes, product orientation, and gesture detection through an interrupt pin (INT). The MMA7660FCR1 is housed in a small 3mm x 3mm x0.9mm DFN package.

Parametrics

MMA7660FCR1 absolute maximum ratings: (1)Maximum Acceleration (all axes, 100 μs), gmax: 10,000 g; (2)Analog Supply Voltage, AVDD: -0.3 to +3.6 V; (3)Digital I/O pins Supply Voltage, DVDD_IO: -0.3 to +3.6 V; (4)Drop Test, Ddrop: 1.8 m; (5)Storage Temperature Range, Tstg: -40 to +125℃.

Features

MMA7660FCR1 features: (1)Digital Output (I2C); (2)3mm x 3mm x 0.9mm DFN Package; (3)Low Power Current Consumption: Off Mode: 0.4 μA, Standby Mode: 2μA, Active Mode: 47μA at 1 ODR; (4)Configurable Samples per Second from 1 to 120 samples a second; (5)low Voltage Operation: Analog Voltage: 2.4 V - 3.6 V; Digital Voltage: 1.71 V - 3.6 V; (6)Auto-Wake/Sleep Feature for Low Power Consumption; (7)Tilt Orientation Detection for Portrait/Landscape Capability; (8)Gesture Detection Including Shake Detection and Tap Detection; (9)Robust Design, High Shocks Survivability (10,000 g); (10)RoHS Compliant; (11)Halogen Free; (12)Environmentally Preferred Product; (13)Low Cost.

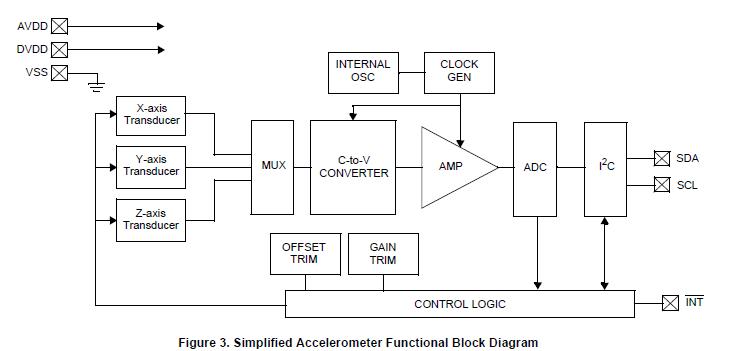

Diagrams

MMA7660FCR1 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MMA7660FCR1
MMA7660FCR1

Freescale Semiconductor

Board Mount Accelerometers 3-Axis Digital Out Accelerometer

Data Sheet

0-1: $0.69
1-25: $0.62
25-50: $0.53
50-100: $0.47
