Product Summary

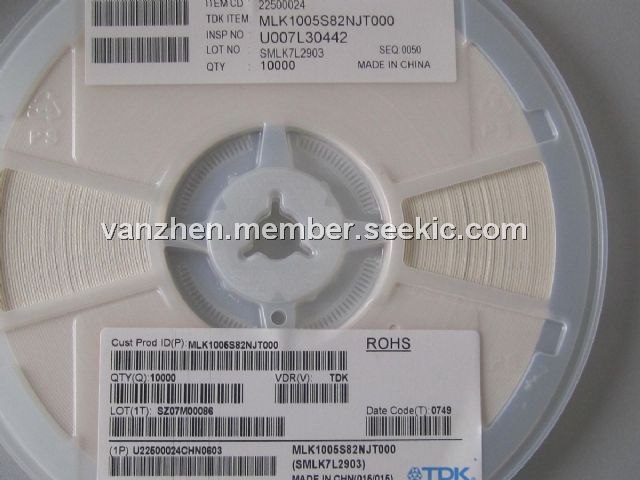

The MLK1005S82NJT000 is a Multilayer Inductor for Ultra High Frequency Range. Applications of the MLK1005S82NJT000 are: Cellular,VCO module,PA module,Bluetooth,other high frequency circuit for mobile applications.

Parametrics

MLK1005S82NJT000 absolute maximum ratings: (1)Test Frequency of Q Nom: 100 MHz; (2)Self Resonant Frequency Min: 1.3 GHz; (3)DC Resistance, Max: 1.8Ohm; (4)Rated Current, Max: 150 mA; (5)Operating Temperature Range: -55 to 125℃; (6)Storage Temperature Range: -55 to 125℃.

Features

MLK1005S82NJT000 features: (1)Small size High-Q RF coil for high frequency circuit of mobile application; (2)High Self Resonance Frequency (SRF); (3)No polarity; (4)Lead free, lead free soldering, and RoHS compliant.

Diagrams

MLK1005S82NJT000 dimensions
