Product Summary

The MLK1005S2N2ST000 is a Multilayer Inductor for Ultra High Frequency Range. Applications of the MLK1005S2N2ST000 are: Cellular,VCO module,PA module,Bluetooth,other high frequency circuit for mobile applications.

Parametrics

MLK1005S2N2ST000 absolute maximum ratings: (1)Test Frequency of Q Nom: 100 MHz; (2)Self Resonant Frequency Min: 8 GHz; (3)DC Resistance, Max: 0.18Ohm; (4)Rated Current, Max: 500 mA; (5)Operating Temperature Range: -55 to 125℃; (6)Storage Temperature Range, Min: -55℃.

Features

MLK1005S2N2ST000 features: (1)Small size High-Q RF coil for high frequency circuit of mobile application; (2)High Self Resonance Frequency (SRF); (3)No polarity; (4)Lead free, lead free soldering, and RoHS compliant.

Diagrams

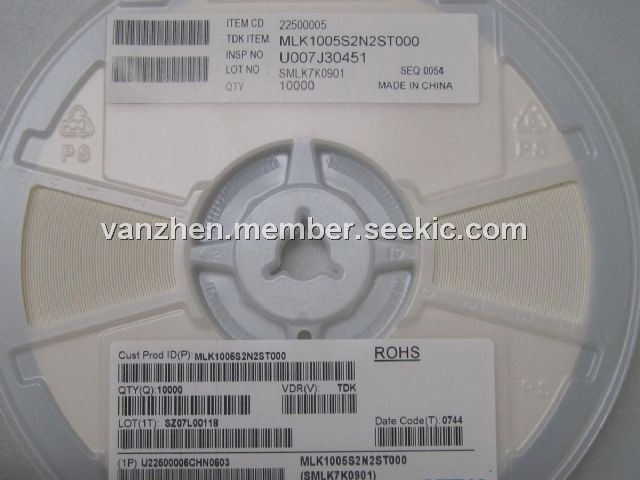

MLK1005S2N2ST000 diagram
