Product Summary

The MLG1005S3N3ST is a SMD Inductor(Coil) for high frequency applications including mobile phones, high frequency modules (PA, VCO, FEM etc.), Bluetooth, W-LAN, UWB and tuners.

Parametrics

MLG1005S3N3ST specifications: (1)Inductance(nH): 3.3; (2)Inductance tolerance: ±3, ±5%; (3)Q min.: 8; (4)Test frequency L, Q (MHz): 100; (5)Self-resonant frequency(GHz): 0.70 to 1.0; (6)DC resistance(Ω): 1.60 to 1.01; (7)Rated current(mA)max.: 200.

Features

MLG1005S3N3ST features: (1)Nominal inductance values are supported from 0.3 to 390nH; (2)Provides high Q characteristics; (3)Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency; (4)The products contain no lead and also support lead-free soldering; (5)It is a product conforming to RoHS directive.

Diagrams

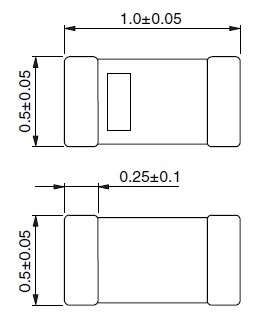

MLG1005S3N3ST dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MLG1005S3N3ST
MLG1005S3N3ST
TDK
RF Inductors 0402 3.3nH 0.3nH
Data Sheet
0-1: $0.07
1-50: $0.05
50-100: $0.05
100-500: $0.05
