Product Summary

The MIC5210-5.0YMM is a dual linear voltage regulator with very low dropout voltage (typically 10mV at light loads and 140mV at 100mA), very low ground current (225uA at 10mA output), and better than 1% initial accuracy. It also features individual logic-compatible enable/shutdown control inputs. The applications of the MIC5210-5.0YMM are Cellular telephones, Laptop, notebook, and palmtop computers, Battery-powered equipment, Bar code scanners, SMPS post-regulator/dc-to-dc modules, High-efficiency linear power supplies.

Parametrics

MIC5210-5.0YMM absolute maximum ratings: (1)Supply Input Voltage (VIN): –20V to +20V; (2)Enable Input Voltage (VEN): –20V to +20V; (3)Power Dissipation (PD): Internally Limited; (4)Storage Temperature Range: -60°C to +150°C; (5)Lead Temperature (soldering, 5 sec.): 260°C.

Features

MIC5210-5.0YMM features: (1)Micrel Mini 8 MSOP package; (2)Up to 150mA per regulator output; (3)Low quiescent current; (4)Low dropout voltage; (5)Wide selection of output voltages; (6)Tight load and line regulation; (7)Low temperature coefficient; (8)Current and thermal limiting; (9)Reversed input polarity protection; (10)Zero off-mode current; (11)Logic-controlled electronic enable.

Diagrams

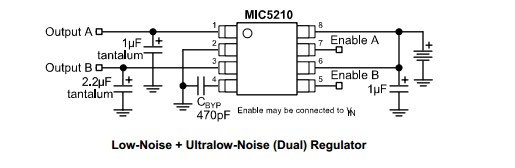

MIC5210-5.0YMM circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC5210-5.0YMM
MIC5210-5.0YMM

IC REG LDO 5V .15A 8-MSOP
Data Sheet
0-1: $1.16
1-25: $0.92
25-100: $0.69
100-250: $0.65
250-500: $0.62
MIC5210-5.0YMM TR
MIC5210-5.0YMM TR

IC REG LDO 5V .15A 8-MSOP
Data Sheet
0-2500: $0.59
