Product Summary

The MIC29502WU is a high current, high accuracy, low-dropout voltage regulator. Using Micrel proprietary Superβeta PNP process with a PNP pass element, these regulators feature 350mV to 425mV (full load) typical dropout voltages and very low ground current. Designed for high current loads, these devices also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The MIC29502WU is fully protected against overcurrent faults, reversed input polarity, reversed lead insertion, overtemperature operation, and positive and negative transient voltage spikes. The MIC29502WU can be applied in battery powered equipment, high-efficiency green computer systems automotive electronics, high-efficiency linear lower supplies, and high-efficiency lost-regulator for switching supply.

Parametrics

MIC29502WU absolute maximum ratings: (1)Input Supply Voltage (VIN): –20V to +60V; (2)Enable Input Voltage (VEN): –0.3V to VIN; (3)Lead Temperature (soldering, 5sec.): 260°C; (4)Power Dissipation: Internally Limited; (5)Storage Temperature Range: –65°C to +150°C.

Features

MIC29502WU features: (1)High current capability; (2)Low-dropout voltage; (3)Low ground current; (4)Accurate 1% guaranteed tolerance; (5)Extremely fast transient response; (6)Reverse-battery and “Load Dump” protection ; (7)Zero-current shutdown mode (5-pin versions); (8)Error flag signals output out-of-regulation (5-pin versions); (9)Also characterized for smaller loads with industryleading performance specifications; (10)Fixed voltage and adjustable versions.

Diagrams

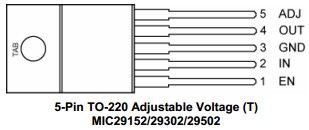

MIC29502WU pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC29502WU
MIC29502WU

IC REG LDO ADJ 5A TO-263-5
Data Sheet
0-1: $3.36
1-25: $2.69
25-100: $2.27
100-250: $2.18
250-500: $2.13
