Product Summary

The MIC2009YM6 is a current limiting power distribution switch. It differs only in its package type, with the MIC2009YM6 packaged in a 6-pin SOT-23.

Parametrics

MIC2009YM6 absolute maximum ratings: (1)control IC: MIC2009; (2)topology: high-side current limiting power switch; (3)VIN supply voltage range: 2.7 to 5.5V; (4)maximum fault pin voltage: VIN; (5)maximum enable pin voltage: VIN.

Features

MIC2009YM6 feature: (1)multiple test points for the enable input EN, fault output FLT/, VIN and VOUT.

Diagrams

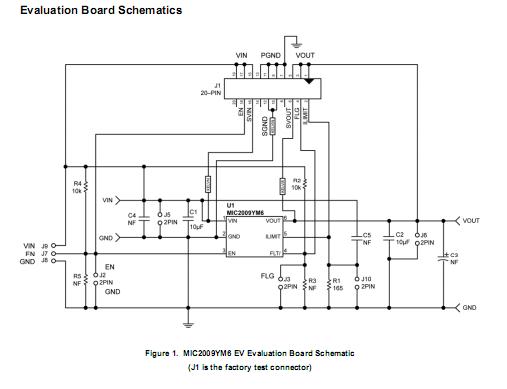

MIC2009YM6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MIC2009YM6
MIC2009YM6


IC DISTRIBUTION SW ADJ SOT23-6

Data Sheet

Negotiable
MIC2009YM6 TR
MIC2009YM6 TR


IC DISTRIBUTION SW ADJ SOT23-6

Data Sheet

0-1: $0.93
1-25: $0.74
25-100: $0.56
100-250: $0.52
250-500: $0.50
MIC2009YM6TX
MIC2009YM6TX


IC DISTRIBUTION SW ADJ SOT23-6

Data Sheet

Negotiable
