Product Summary
The MC33078DR2G is a high quality monolithic amplifier employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. The MC33078DR2G incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance.
Parametrics
MC33078DR2G absolute maximum ratings: (1)Supply Voltage (VCC to VEE): +36 V; (2)Output Short Circuit Duration: Indefinite sec; (3)Maximum Junction Temperature: +150 ℃; (4)Storage Temperature: -60 to +150 ℃; (5)ESD Protection at any Pin: 600V; (6)Operating Temperature Range: -40 to +85 ℃.
Features
MC33078DR2G features: (1)Dual Supply Operation: ±5.0 V to ±18 V; (2)Low Voltage Noise: 4.5 nV/√Hz; (3)Low Input Offset Voltage: 0.15 mV; (4)Low T.C. of Input Offset Voltage: 2.0 μV/℃; (5)Low Total Harmonic Distortion: 0.002%; (6)High Gain Bandwidth Product: 16 MHz; (7)High Slew Rate: 7.0 V/μs; (8)High Open Loop AC Gain: 800 @ 20 kHz; (9)Excellent Frequency Stability; (10)Large Output Voltage Swing: +14.1 V/ -14.6 V; (11)ESD Diodes Provided on the Inputs.

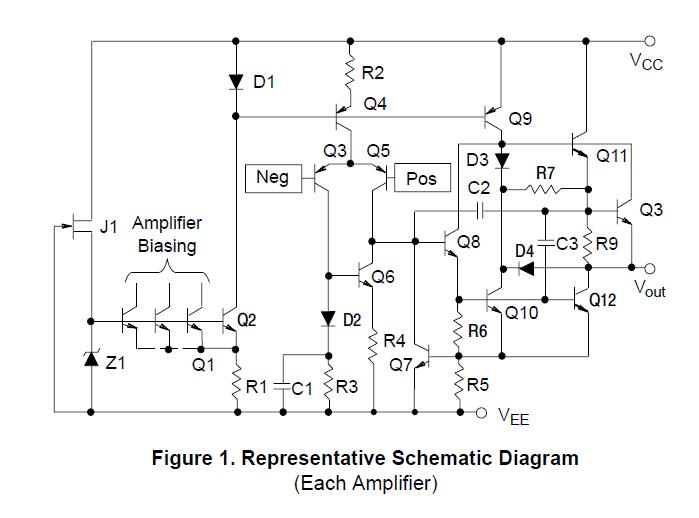

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33078DR2G |
ON Semiconductor |
Operational Amplifiers - Op Amps 5-18V Dual Lo Noise 7V/us Ind. Temp |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MC3302/4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DW |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DWG |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM |
Data Sheet |
|
|
||||||||||||
|
MC33023DWR2 |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33023DWR2G |
ON Semiconductor |
Current Mode PWM Controllers Single Ended Voltage or Current Mode PWM |
Data Sheet |
|
|
||||||||||||
