Product Summary

The MBM29LV008TA/BA are a 8M-bit, 3.0 V-only Flash memory organized as 1M bytes of 8 bits each. The
MBM29LV008TA/BA are offered in a 40-pin TSOP(I) package. These devices are designed to be programmed
in-system with the standard system 3.0 V VCC supply. 12.0 V VPP and 5.0 V VCC are not required for write or erase
operations. The devices can also be reprogrammed in standard EPROM programmers.

Features

? Single 3.0 V read, program, and erase
Minimizes system level power requirements
? Compatible with JEDEC-standard commands
Uses same software commands as E2PROMs
? Compatible with JEDEC-standard world-wide pinouts
40-pin TSOP(I) (Package suffix: PTN – Normal Bend Type, PTR – Reversed Bend Type)
? Minimum 100,000 program/erase cycles
? High performance
70 ns maximum access time

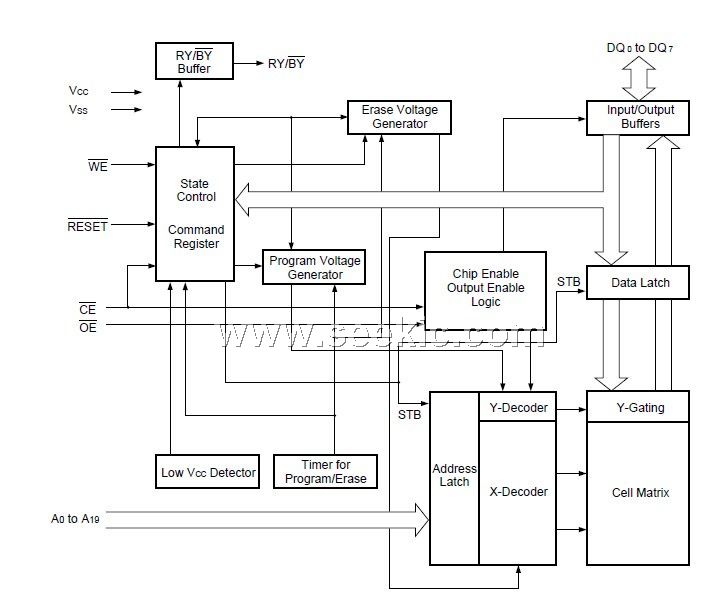

Diagrams
