MBI5170, Constant Current LED Sink Driver, DIP, 5V, 60mA, Mimix Broadband

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	0.30 / Piece
100 ~ 1000 :	0.20 / Piece
1000 ~ 100000 :	0.20 / Piece

PartNumber:: MBI5170

Brand:: Mimix Broadband - MBI | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 1000000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-05

From Other Seller

Part Number:MBI5170
US $0.20 - 0.30
Quantity:

piece

Product Summary

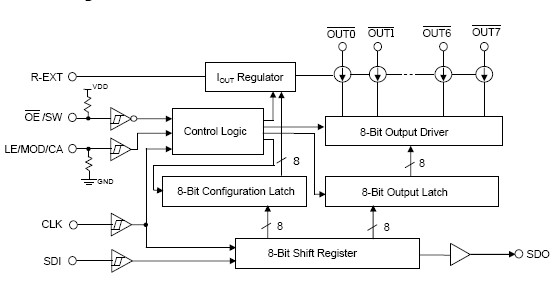

The MBI5170 is a Constant Current LED Sink Driver. MBI5170 contains an 8-bit Shift Register and an 8-bit Output Latch, which convert serial input data into parallel output format. At MBI5170 output stages, eight regulated current ports are designed to provide uniform and constant current sinks with small skew between ports for driving LED’s with a wide range of forward voltage (Vf) variations. Users may adjust the output current from 5 mA to 120 mA with an external resistor Rext, which gives users flexibility in controlling the light intensity of LED’s. MBI5170 guarantees to endure maximum 17V at the output ports. Besides, the high clock frequency up to 25 MHz also satisfies the system requirements of high volume data transmission.

Parametrics

MBI5170 absolute maximum ratings: (1)Supply Voltage: 0 to 7.0 V; (2)Input Voltage : -0.4 to VDD + 0.4 V; (3)Output Current : +120 mA; (4)Output Voltage : -0.5 to +20 V; (5)Clock Frequency : 25 MHz; (6)GND Terminal Current : 1000 mA; (7)Power Dissipation(On PCB, Ta=25℃): 1.32W; (8)Thermal Resistance (On PCB, Ta=25℃): 94.91℃/W; (9)Operating Temperature : -40 to +85 ℃; (10)Storage Temperature : -55 to +150 ℃.
