Product Summary

The MBI5169 is a constant current LED sink driver.

Parametrics

MBI5169 absolute maximum ratings: (1)supply voltage : 0 to 7 V; (2)output current : +120mA; (3)output voltage : -0.5 to +20.0 V; (4)clock frequency : 25 MHz; (5)GND terminal current : 960mA; (6)operating temperature : -40 to +85 ℃; (7)storage temperature : -55 to +150 ℃.

Features

MBI5169 features: (1)Error Detection mode to detect individual LED open-circuit errors; (2)8 constant-current output channels; (3)Constant output current individual invariant to load voltage change; (4)Output current adjusted through an external resistor; (5)Constant output current range : 5 to 120mA; (6)25MHz clock frequency; (7)Schmitt trigger input; (8)5V supply voltage.

Diagrams

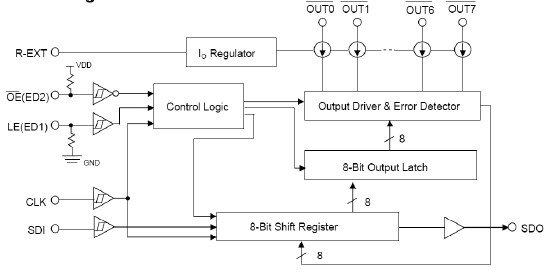

MBI5169 block diagram
