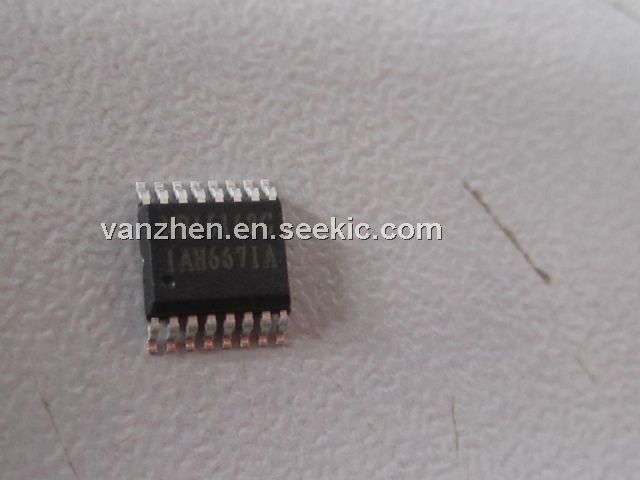

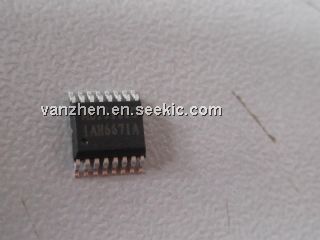

MBI5168

MBI5168, Constant Current LED Sink Driver, SOP, 5V, 60mA, Mimix Broadband

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	0.50 / Piece
2501 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: MBI5168

Brand:: Mimix Broadband - MBI | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-05

From Other Seller

Part Number:MBI5168
US $0.30 - 0.50
Quantity:

piece

Product Summary

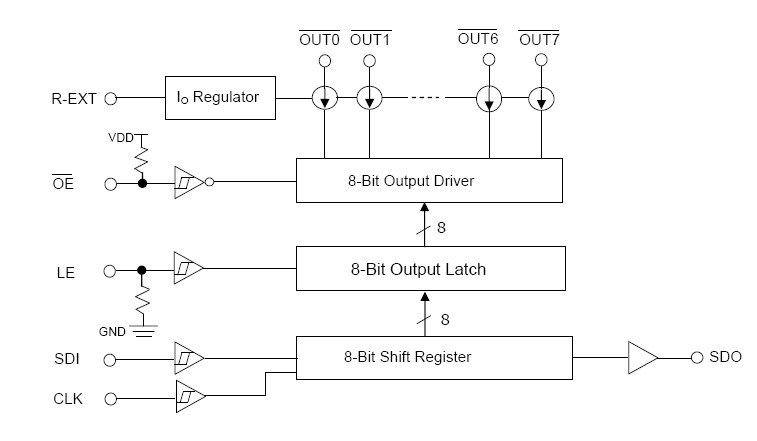

The MBI5168 is a Constant Current LED Sink Driver. MBI5168 is designed for LED display applications. As an enhancement of its predecessor, MBI5001, MBI5168 exploits PrecisionDrive? technology to enhance its output characteristics. MBI5168 contains a serial buffer and data latches, which convert serial input data into parallel output format. At MBI5168 output stage, eight regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of Vf variations. MBI5168 provides users with great flexibility and device performance while using MBI5168 in their system design for LED display applications, e.g. LED panels. Users may adjust the output current from 5 mA to 120 mA through an external resistor Rext, which gives users flexibility in controlling the light intensity of LEDs. MBI5168 guarantees to endure maximum 17V at the output ports. The high clock frequency up to 25 MHz also satisfies the system requirements of high volume data transmission.

Parametrics

MBI5168 absolute maximum ratings: (1)Supply Voltage: 0 to 7.0 V; (2)Input Voltage : -0.4 to VDD + 0.4 V; (3)Output Current : +120 mA; (4)Output Voltage : -0.5 to +20 V; (5)Clock Frequency : 25 MHz; (6)GND Terminal Current : 1000 mA; (7)Power Dissipation(On PCB, Ta=25℃): 1.32W; (8)Thermal Resistance (On PCB, Ta=25℃): 94.91℃/W; (9)Operating Temperature : -40 to +85 ℃; (10)Storage Temperature : -55 to +150 ℃.

Features

MBI5168 features: (1)8 constant-current output channels; (2)Constant output current invariant to load voltage change; (3)Output current adjusted through an external resistor; (4)Constant output current range: 5 -120 mA; (5)25MHz clock frequency; (6)Schmitt trigger input; (7)5V supply voltage.
