Product Summary

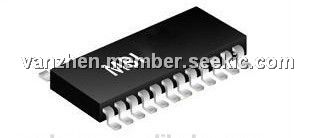

The MBI5030 is a 16-Channel Constant Current LED Driver With 16-bit PWM Control. The MBI5030 is designed for LED video applications using internal Pulse Width Modulation (PWM)control with selectable 16-bit or 12-bit color depth. The MBI5030 features a 16-bit shift register which converts serial input data into each pixel gray scale of output port. At the MBI5030 output port, sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs with a wide range of VF variations.
Parametrics
MBI5030 absolute maximum ratings: (1)Constant output current range: 3~90mA; (2)supply voltage: 3.0V-5.5V; (3)Maximum data clock frequency: 30MHz.
Features
MBI5030 features: (1)Backward compatible with MBI5026 in package; (2)16 constant-current output channels; (3)16-bit/12-bit color depth PWM control; (4)Scrambled-PWM technology to improve refresh rate; (5)Compulsory open circuit detection to detect individual LED errors Full panel, data independent Silent error detection with 0.1mA.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBI5030GFN |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MBI5001 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MBI5016 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MBI5016CF |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MBI5016CN |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MBI5016CP |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MBI5024GF |
Other |
|
Data Sheet |
Negotiable |
|
||||
